Industrias Zeta

General purpose
Terminals

Cilindricals

Receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related
17023	1.00/3.00	0.40	BRASS	4.50	10000	4000		-

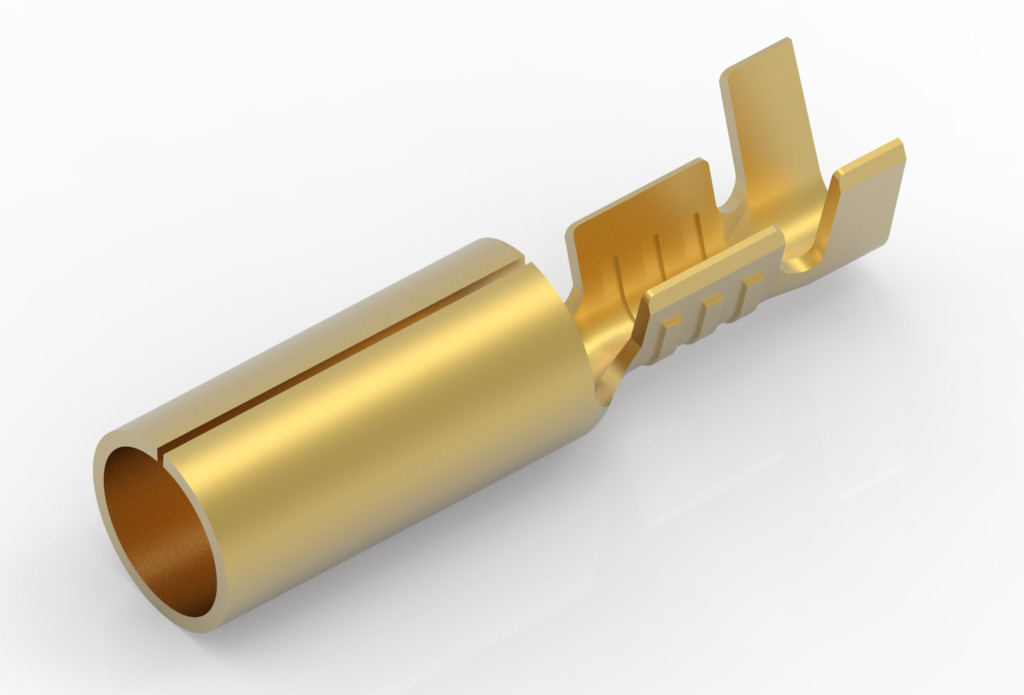

17025	0.50/1.50	0.40	BRASS	4.50	10000	4000		-
17028	0.50/1.50	0.35	BRASS	4.00	10000	4000		-
17033	1.00/3.00	0.40	PHOSPHORUS BRONZE	4.50	10000	4000		-
17035	0.50/1.50	0.40	PHOSPHORUS BRONZE	4.50	10000	4000		-
17119	0.50/1.50	0.35	BRASS	3.80	10000	4000		-
17120	1.00/3.00	0.35	BRASS	3.80	10000	4000		-
17176	1.00/3.00	0.35	BRASS	4.00	10000	4000		-
17308	0.50/1.50	0.40	BRASS	4.80	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related
17022	1.00/3.00	0.40	BRASS	4.50	10000	4000		-
17024	0.50/1.50	0.40	BRASS	4.50	10000	4000		-

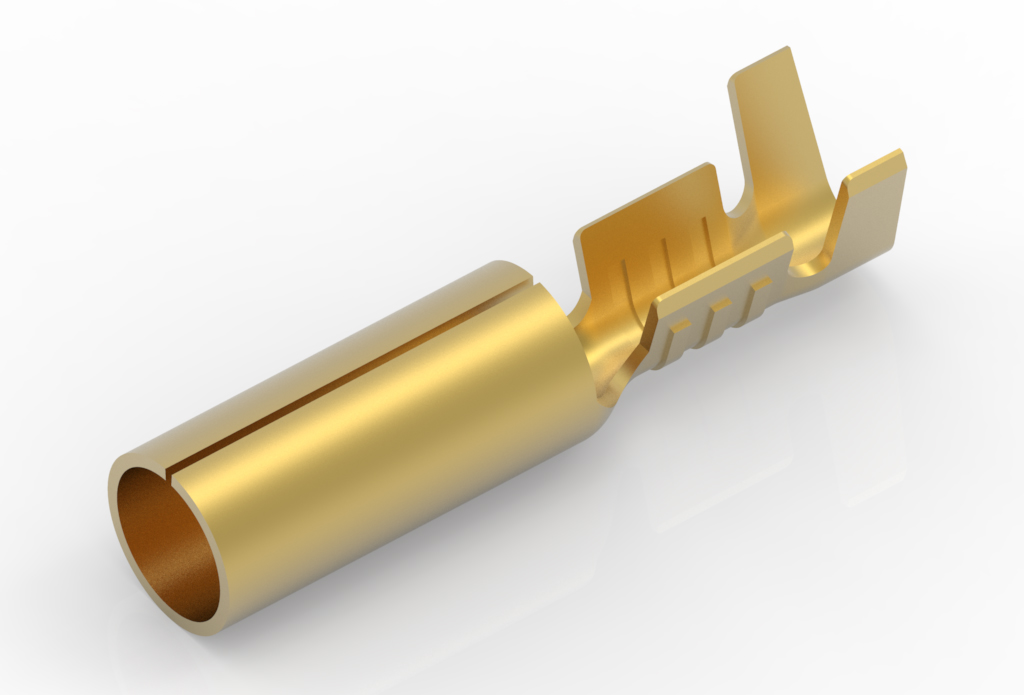

17027	0.50/1.50	0.35	BRASS	4.00	10000	4000		-
17032	1.00/3.00	0.40	PHOSPHORUS BRONZE	4.50	10000	4000		-
17034	0.50/1.50	0.40	PHOSPHORUS BRONZE	4.50	10000	4000		-
17038	0.50/1.50	0.40	PHOSPHORUS BRONZE	4.00	10000	4000		-
17384	0.50/1.50	0.35	BRASS	3.70	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related

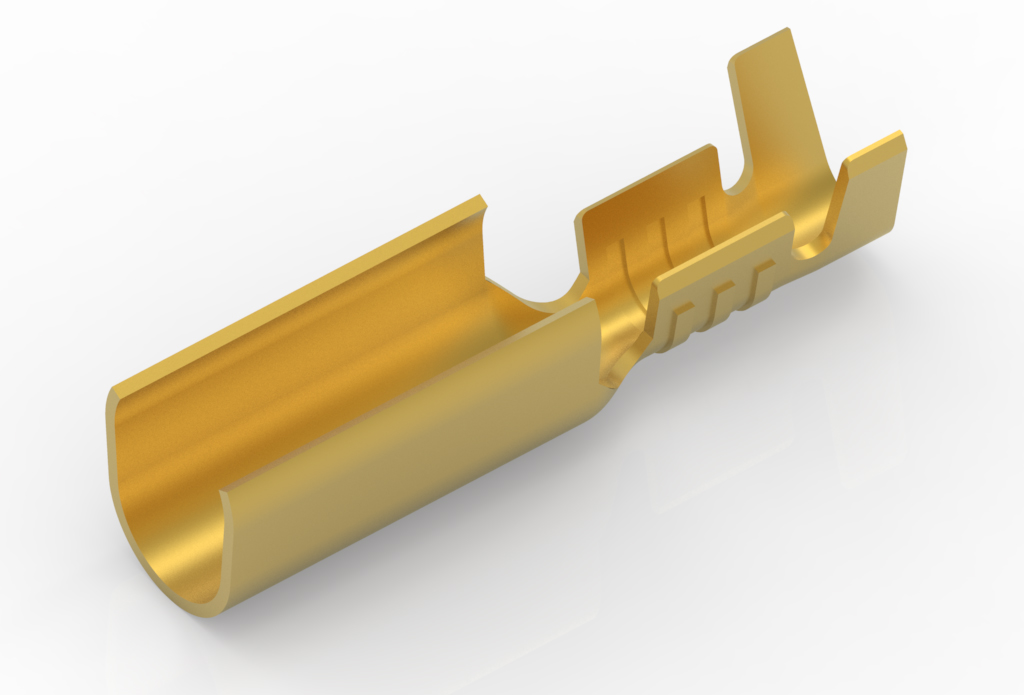

17173	0.50/1.50	0.35	BRASS	10000	4000		-

Code	Material thickness mm	Material	Hole diameter mm	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related

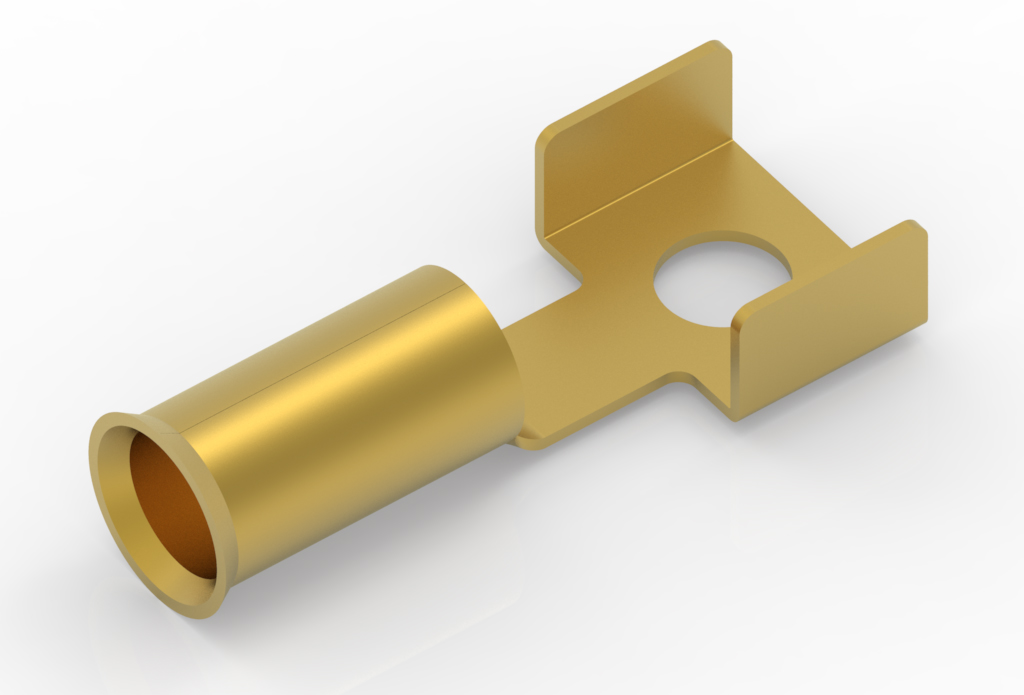

17335	0.35	BRASS	3.25	4.00	10000	5000		-

Code	Wire range mm²	Material thickness mm	Material	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related

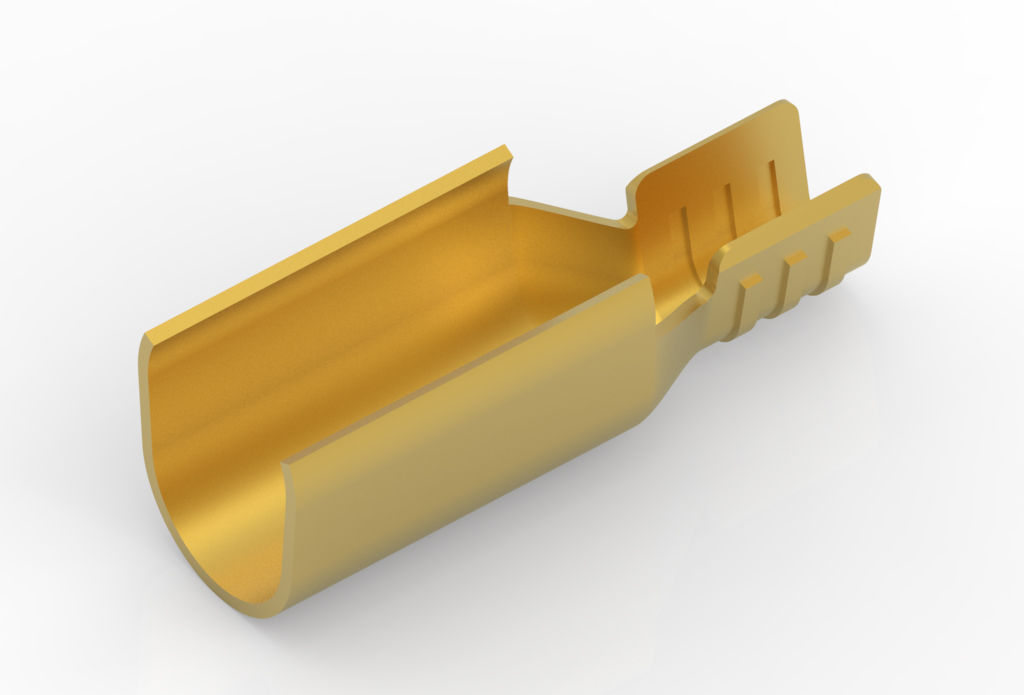

33169	0.50/1.50	0.30	BRASS	0.50	20000	4000		-
33180	0.50/1.50	0.30	BRASS	0.50	20000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related
33107	0.50/1.50	0.30	BRASS	2.75	20000	4000		-
33110	0.50/1.50	0.30	BRASS	2.20	20000	4000		-
33135	0.50/1.50	0.25	BRASS	1.95	20000	4000		-
33155	0.50/1.50	0.25	BRASS	2.00	20000	4000		-
33165	0.50/1.50	0.30	BRASS	3.00	20000	4000		-
33199	0.50/1.50	0.30	BRASS	2.30	20000	4000		-
33310	0.50/1.50	0.30	BRASS	2.60	20000	4000		-

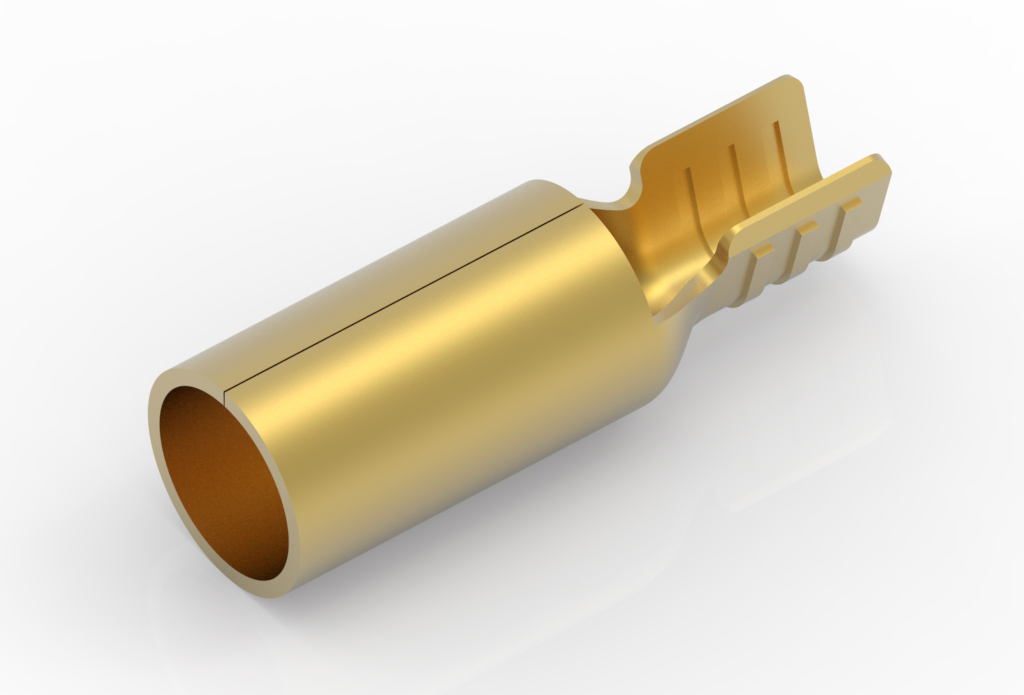

33379	0.50/1.50	0.35	BRASS	4.00	15000	4000		-
33421	0.50/1.50	0.30	BRASS	3.20	20000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related

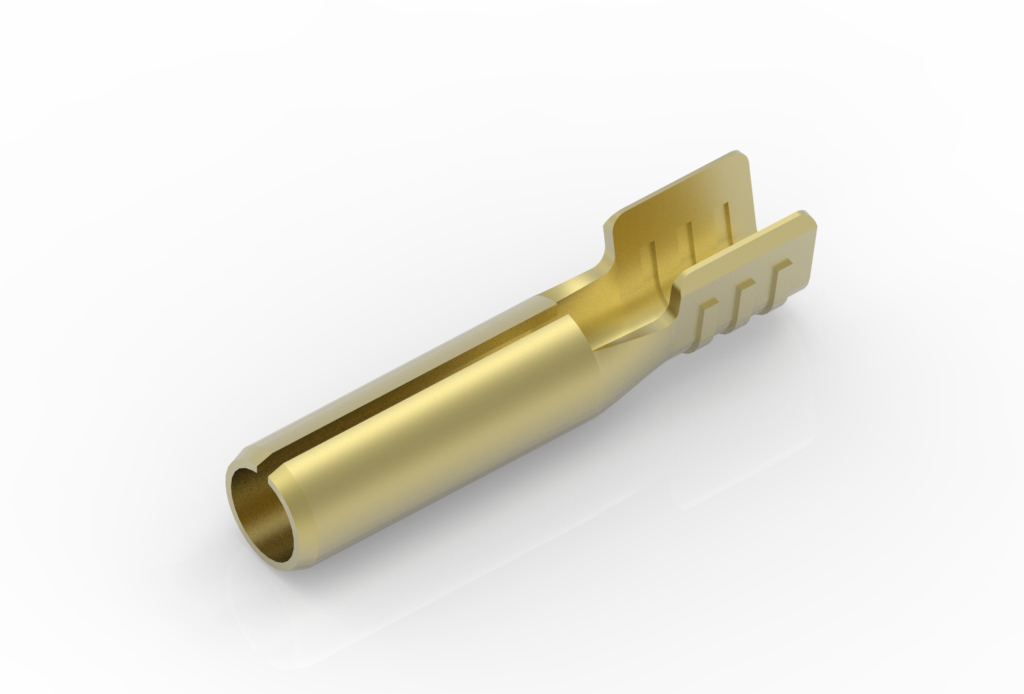

33507	0.50/1.50	0.30	BRASS	7000	4000		-

Code	Material thickness mm	Material	Qty per reel	Drawing	Connector Related

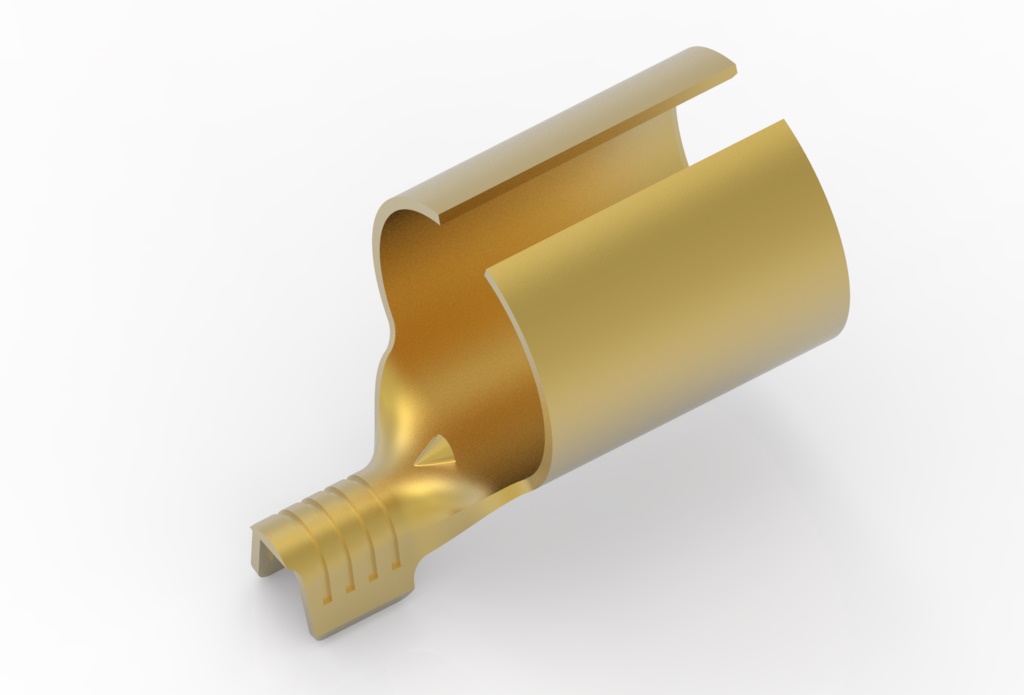

71491	0.40	BRASS	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related

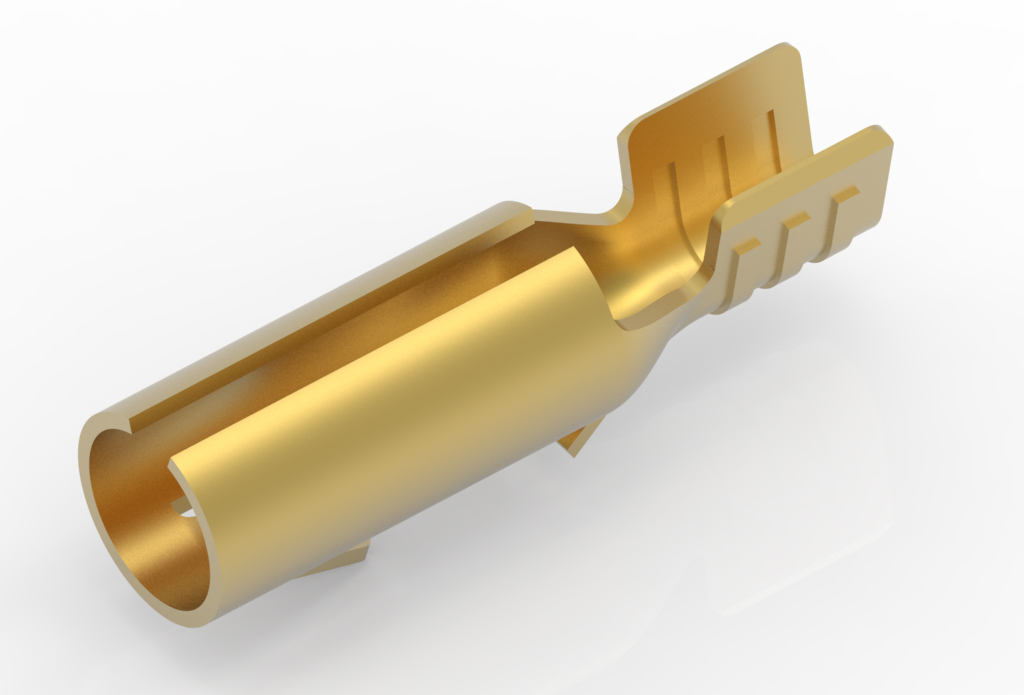

77362	0.50/1.50	0.30	BRASS	3.20	15000	4000		-
77412	0.50/1.50	0.25	BRASS	2.10	15000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related
79369	0.50/1.50	0.30	BRASS	1.80	20000	4000		-

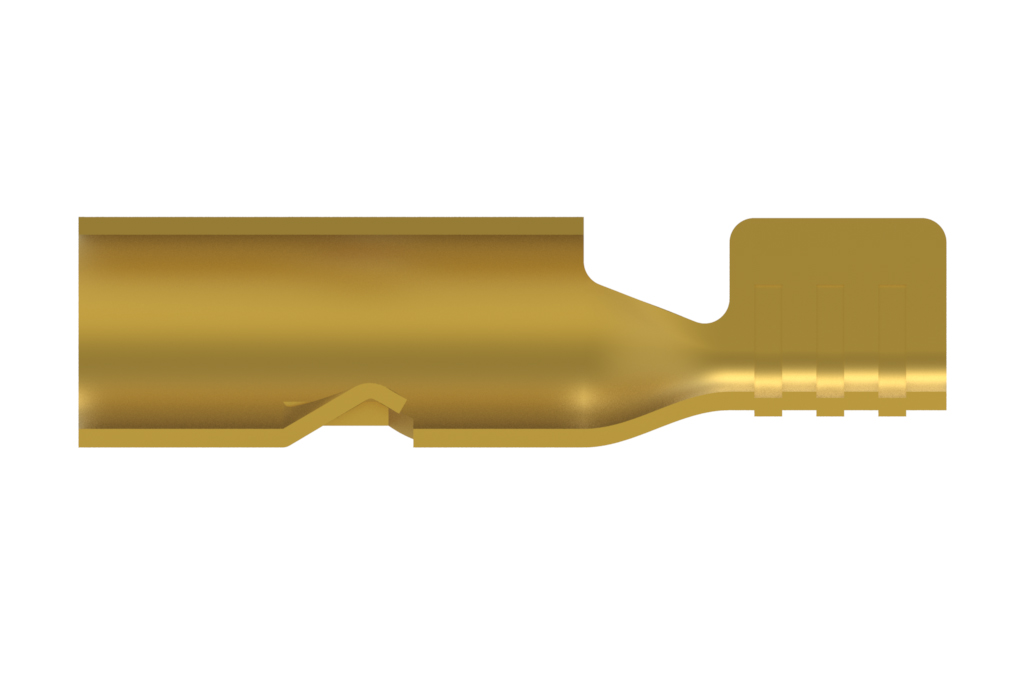

79370	0.50/1.50	0.30	BRASS	2.20	20000	4000		-

Terminal for 1/4 glass fuse

Code	Wire range mm²	Material thickness mm	Material	Fits pin ø mm	Qty per reel	Qty per bag	Drawing	Connector Related

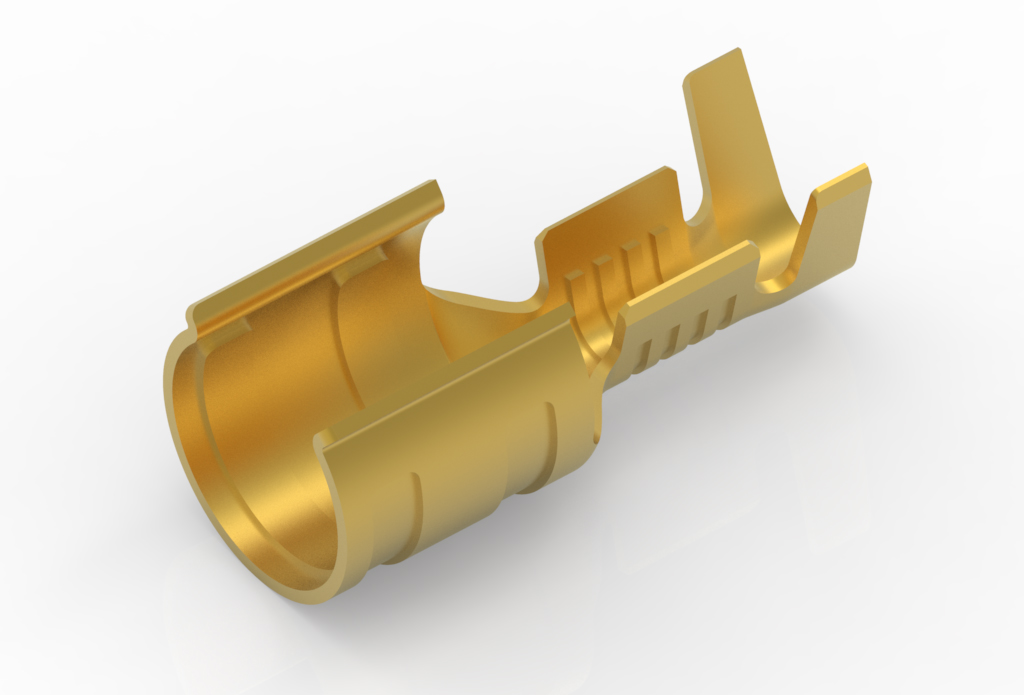

37133	0.50/1.25	0.35	BRASS	6.00	5000	4000		+
37361	1.00/3.00	0.35	BRASS	6.00	5000	4000		+

Shur-plug

Code	Wire range mm²	Material thickness mm	Material	ø mm	Qty per reel	Qty per bag	Drawing	Connector Related

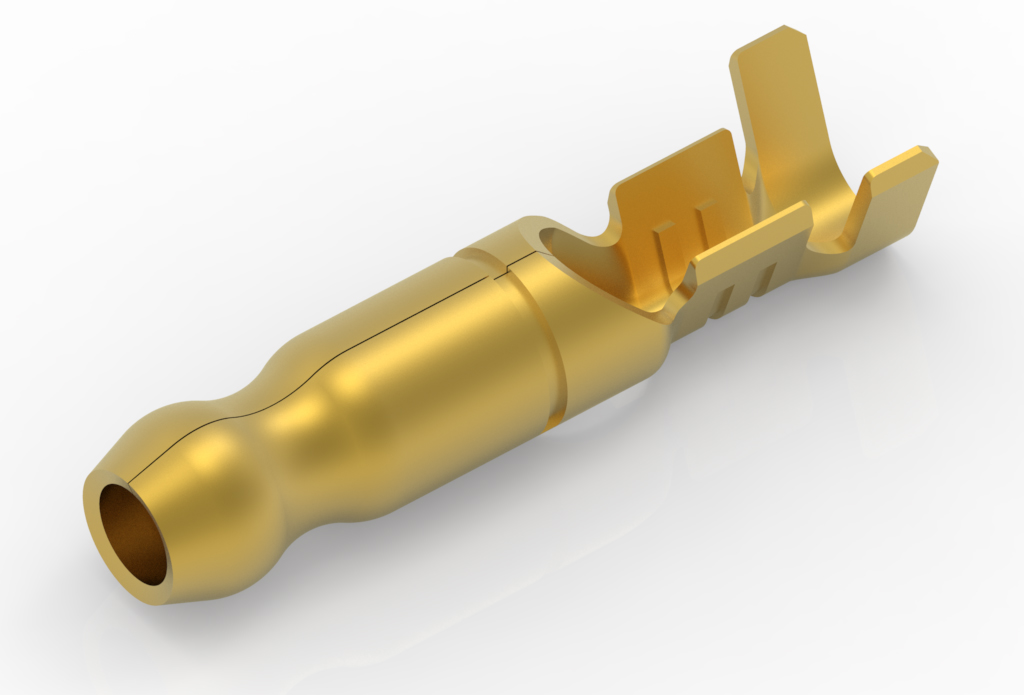

18026	0.60/2.50	0.43	BRASS	4.5	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	ø mm	Qty per reel	Qty per bag	Drawing	Connector Related

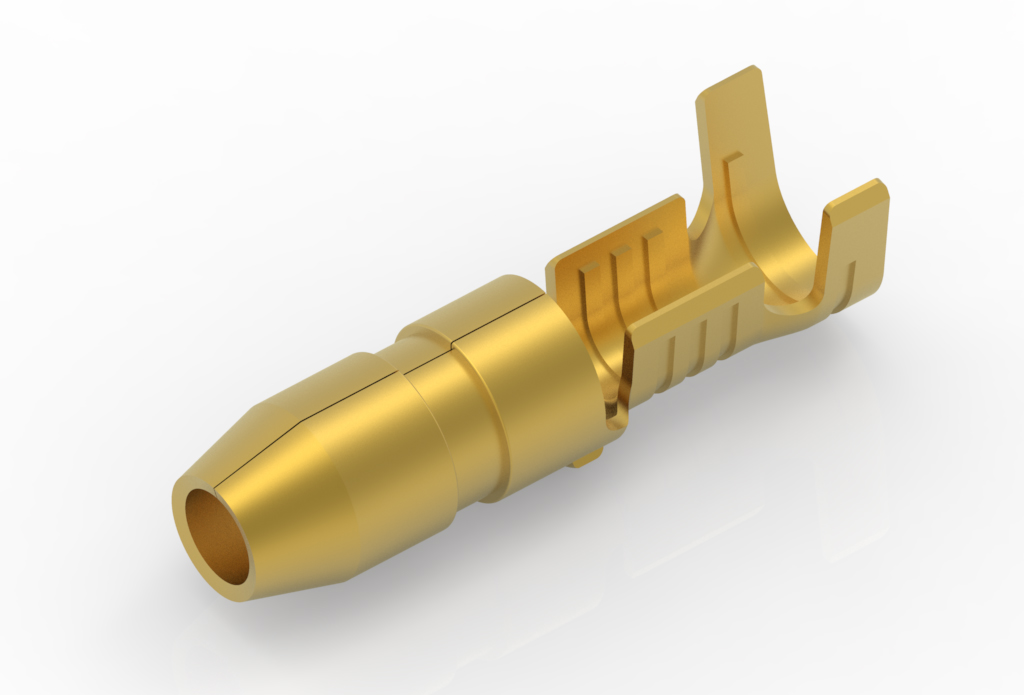

95451	0.50/1.50	0.35	BRASS	4	12500	4000		-
