Industrias Zeta

General purpose
Terminals

Receptacles

2.80 mm series

One-way connnection receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
27067	0.25/1.00	0.25	BRASS	0.80	15000	4000		+
27069	0.25/1.00	0.25	BRASS	0.50	15000	4000		+

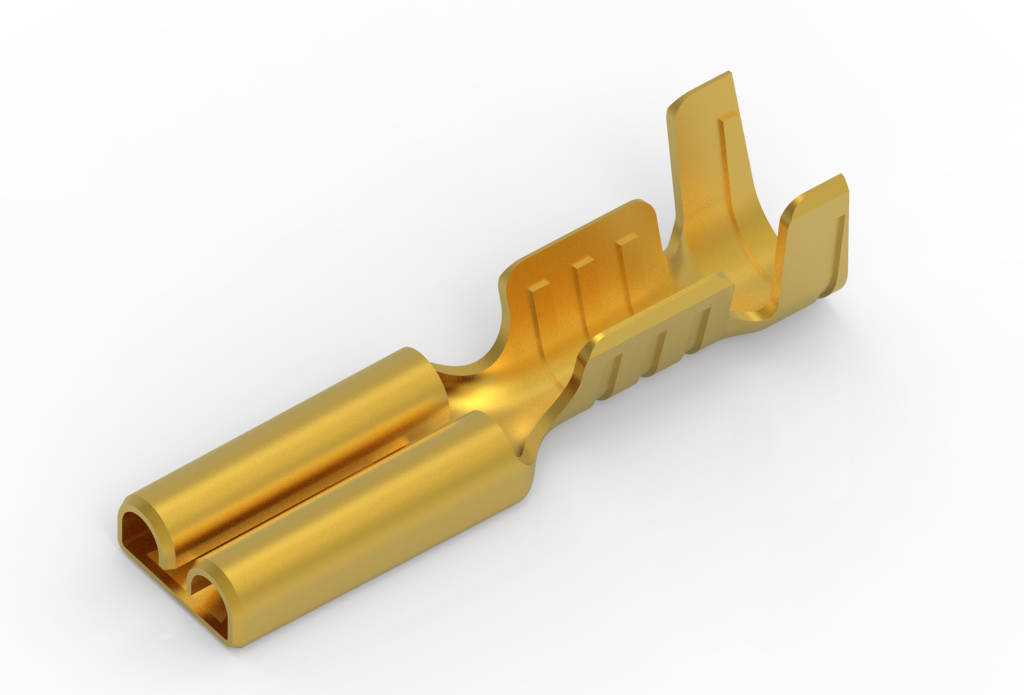

27134	0.25/1.00	0.25	BRASS	0.30	15000	4000		+
27141	0.25/1.00	0.25	BRASS	0.40	15000	4000		+
27273	0.25/1.00	0.25	BRASS	0.50	15000	4000		+
27275	0.25/1.00	0.25	STEEL	0.50	15000	4000		+
27309	0.25/1.00	0.25	BRASS	0.70	15000	4000		+
27402	1.00/1.50	0.25	BRASS	0.80	15000	4000		-
27403	1.00/1.50	0.25	BRASS	0.50	15000	4000		-

Multi-way connection receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
27068	0.25/1.00	0.25	BRASS	0.80	15000	4000		+

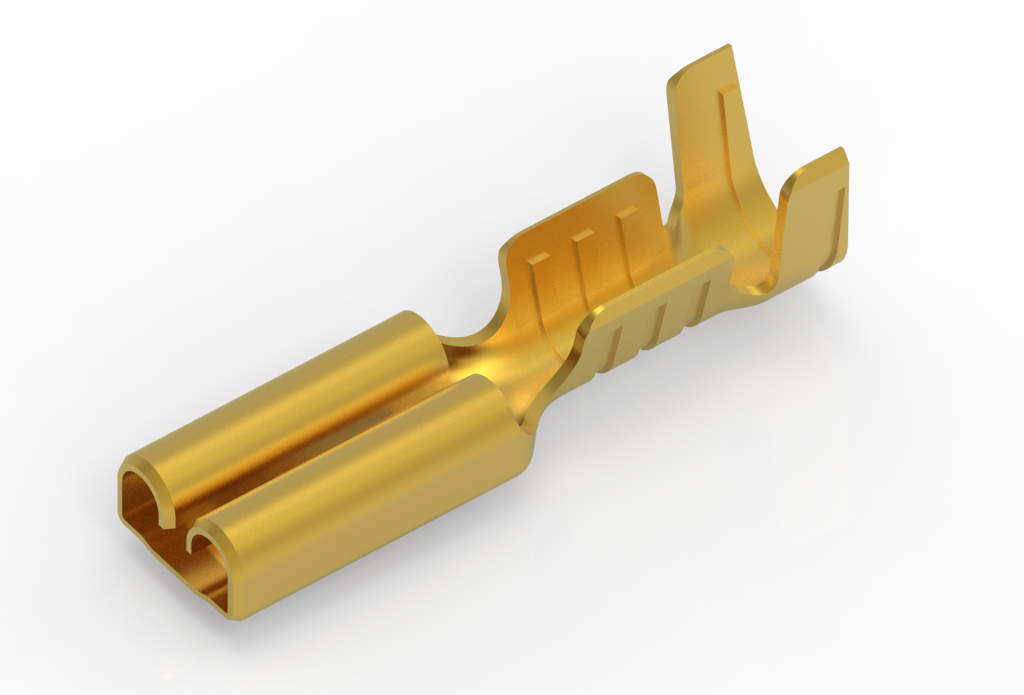

27070	0.25/1.00	0.25	BRASS	0.50	15000	4000		+
27287	0.25/1.00	0.25	PHOSPHORUS BRONZE	0.80	15000	4000		+
27378	0.25/1.00	0.25	BRASS	0.50	15000	4000		-
27405	1.00/1.50	0.25	BRASS	0.80	15000	4000		-
27406	1.00/1.50	0.25	BRASS	0.50	15000	4000		-
27508	0.25/1.00	0.25	BRASS	0.40	15000	4000		-

4.75 mm series

One-way connnection receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

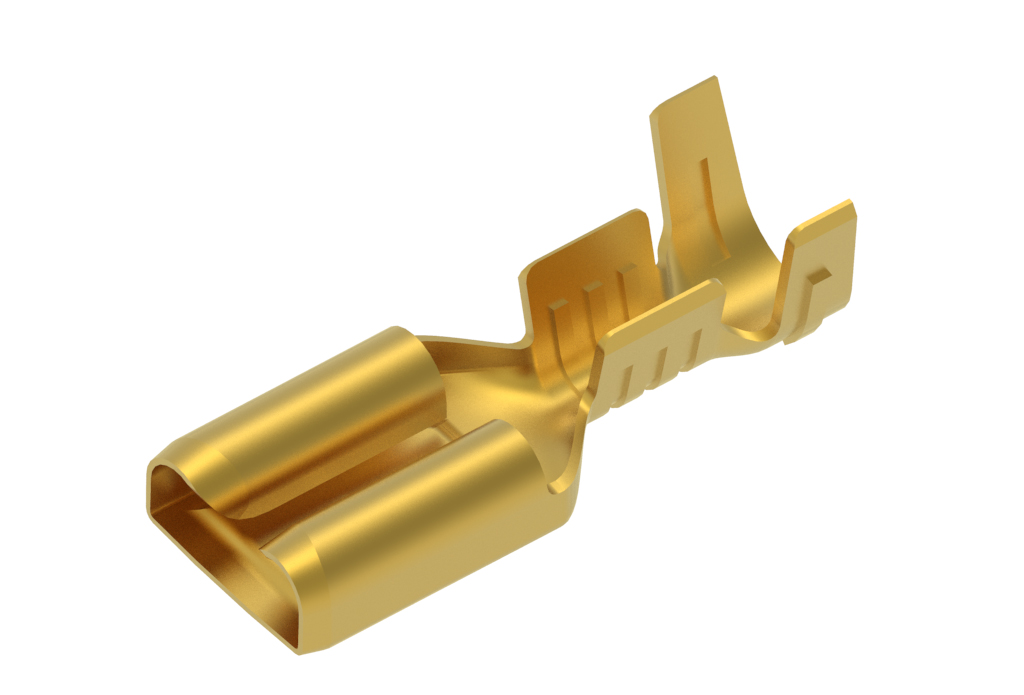

48177	0.50/2.00	0.30	BRASS	0.50	12500	4000		-
48178	0.50/2.00	0.30	BRASS	0.80	12500	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
48167	0.50/2.00	0.30	BRASS	0.80	12500	4000		-
48283	0.50/2.00	0.30	PHOSPHORUS BRONZE	0.80	12500	4000		-

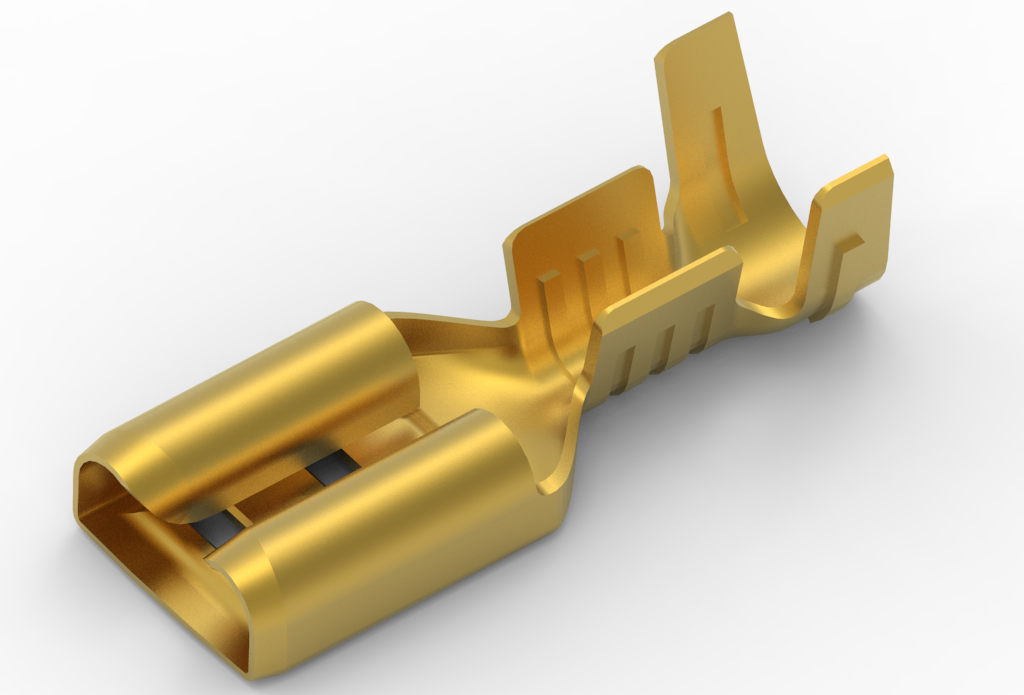

48296	0.50/2.00	0.30	BRASS	0.50	12500	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

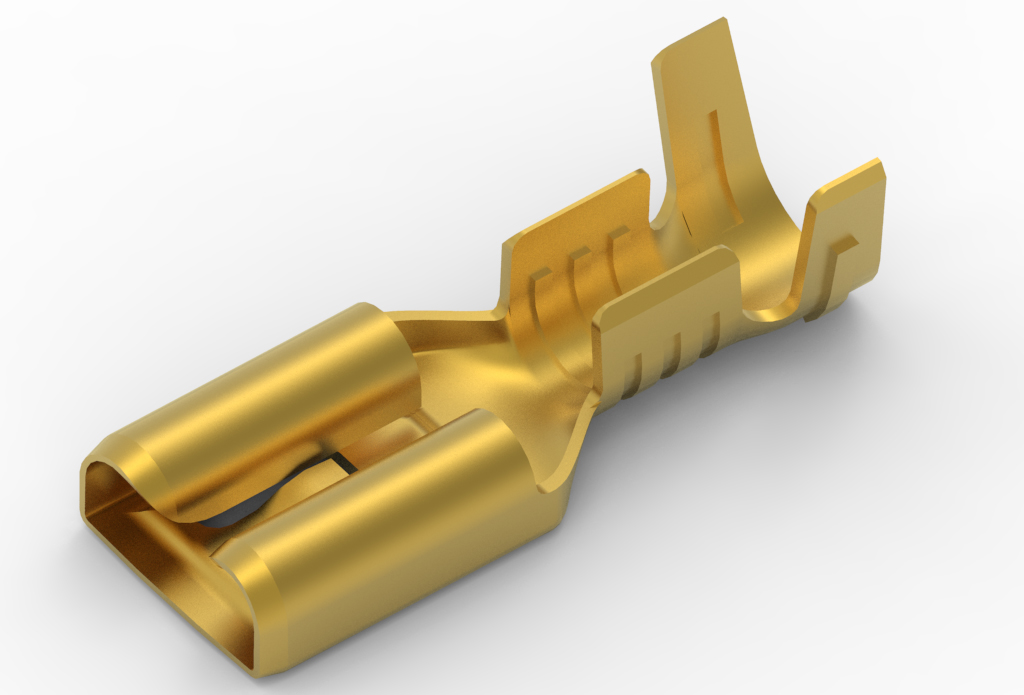

48346	0.50/2.00	0.30	BRASS	0.80	12500	4000		-

5.00 mm series

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
28077	0.50/1.25	0.35	BRASS	0.80	10000	4000		-

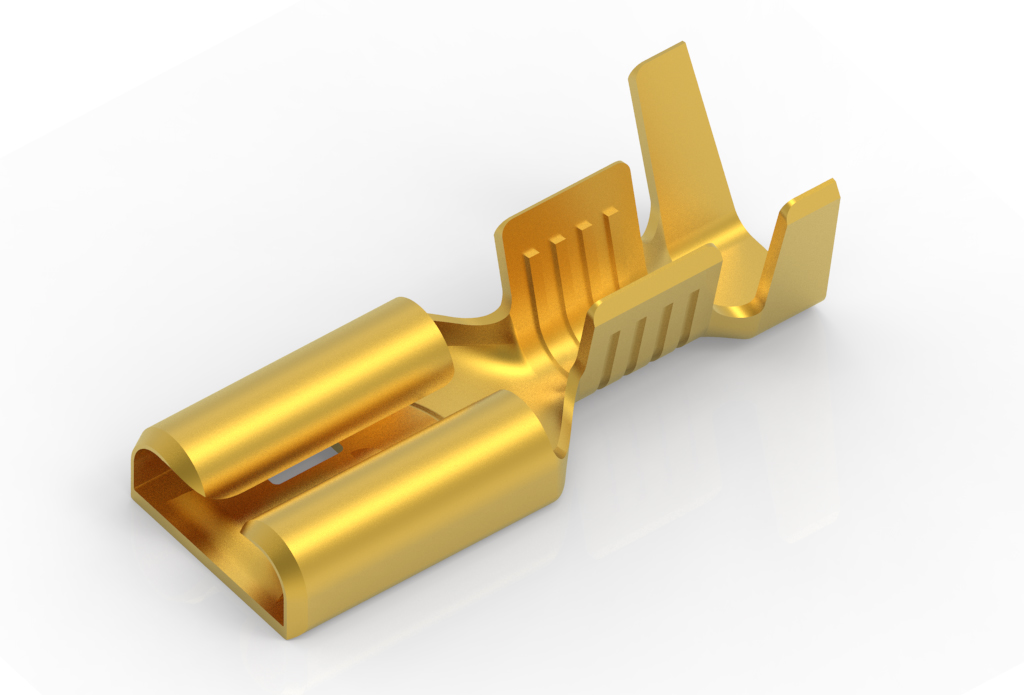

28078	1.00/3.00	0.35	BRASS	0.80	10000	4000		-
28158	0.50/1.25	0.35	BRASS	0.50	10000	4000		-

Multi-way connection receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
28079	0.50/1.25	0.35	BRASS	0.80	10000	4000		-
28080	1.00/3.00	0.35	BRASS	0.80	10000	4000		-

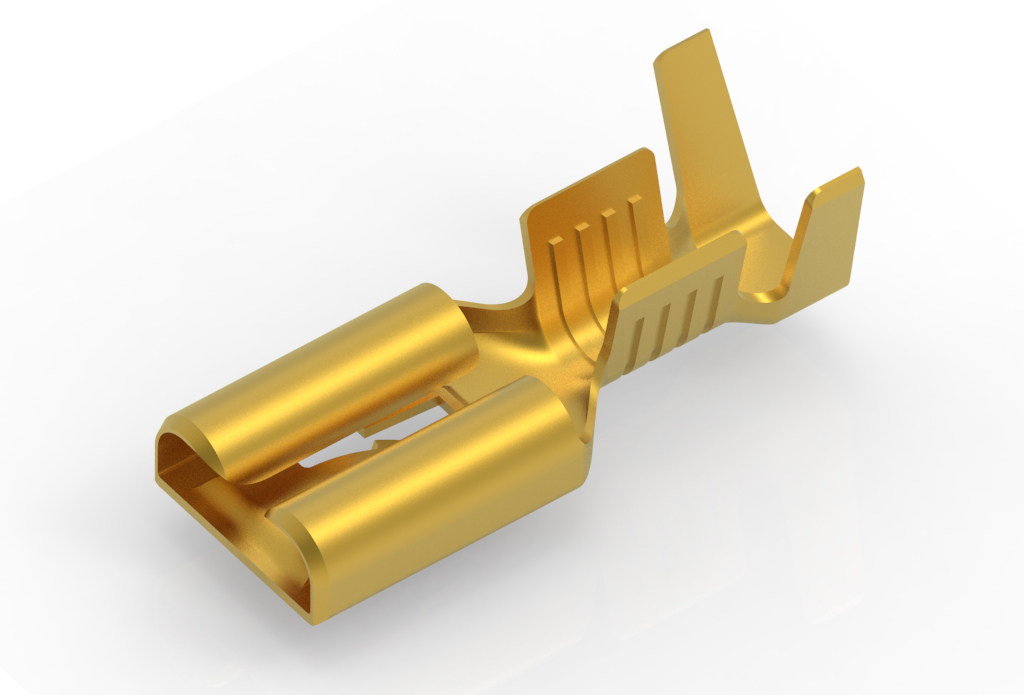

28201	1.00/3.00	0.30	BRASS	0.60	10000	4000		-
28426	0.50/1.25	0.30	BRASS	0.60	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
55375	1.00/3.00	0.35	BRASS	0.60	8000	4000		+

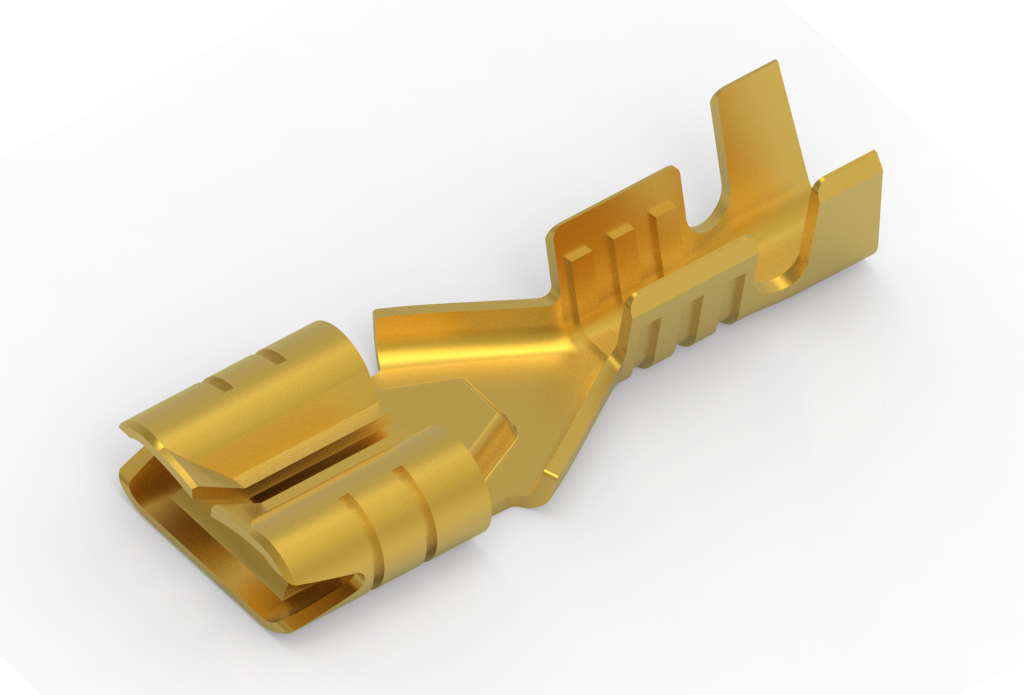

55387	0.35/1.00	0.35	BRASS	0.60	10000	4000		+

Positive lock receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

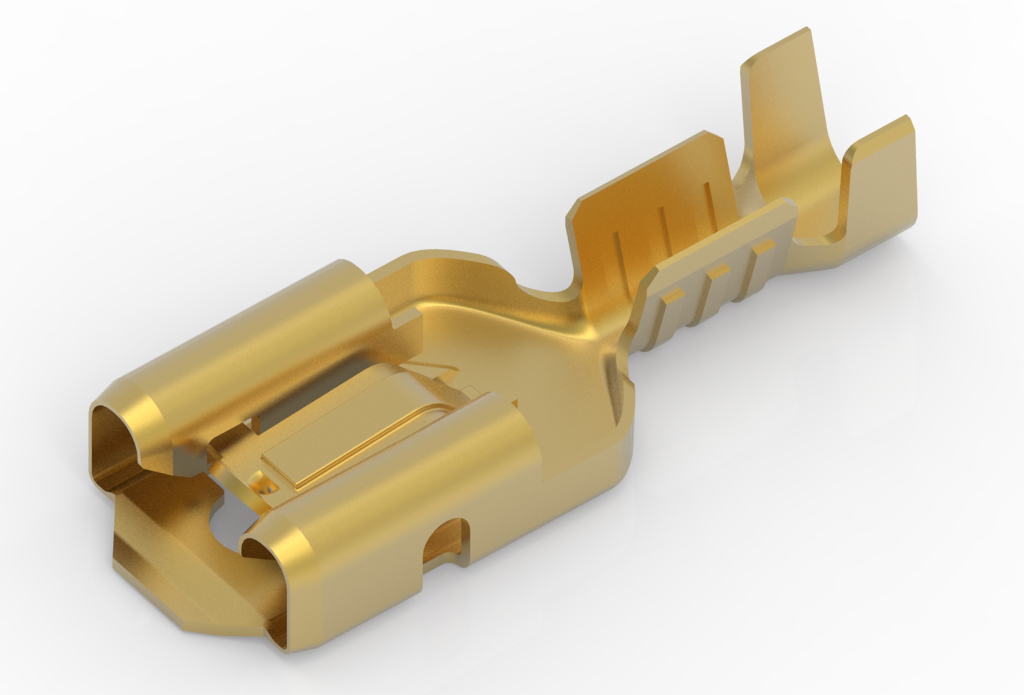

41142	0.50/1.50	0.30	BRASS	0.80	10000	4000		-
41170	0.50/1.50	0.30	PHOSPHORUS BRONZE	0.80	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
49184	0.35/1.00	0.40	BRASS	0.80	6000	4000		-

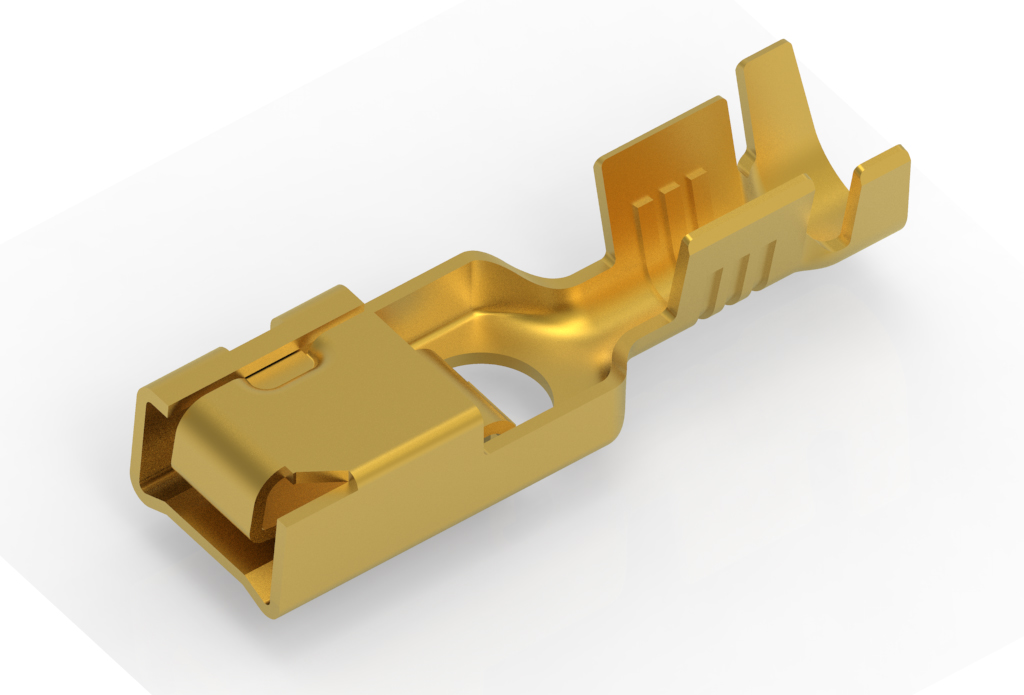

49187	1.00/3.00	0.40	BRASS	0.80	6000	4000		-

6.35 mm series

One-way connnection receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
11004	0.35/1.00	0.40	BRASS	0.80	10000	4000		+

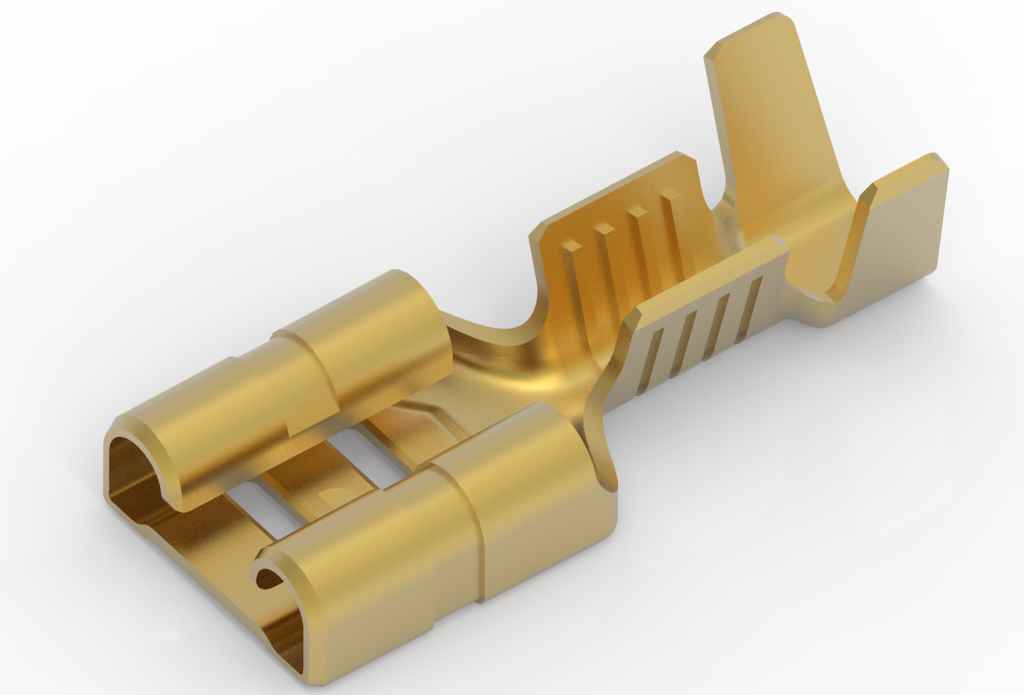

11005	0.80/3.00	0.40	BRASS	0.80	8000	4000		+
11101	0.80/3.00	0.40	PHOSPHORUS BRONZE	0.80	8000	4000		+
11103	2.50/6.00	0.45	BRASS	0.80	5000	4000		+
11197	0.80/3.00	0.40	BRASS	0.50	8000	4000		+
11317	0.80/3.00	0.40	STAINLESS STEEL	0.80	8000	4000		+
11344	0.35/1.00	0.40	STAINLESS STEEL	0.80	10000	4000		+

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
91431	0.35/1.00	0.35	BRASS	0.80	10000	4000		+

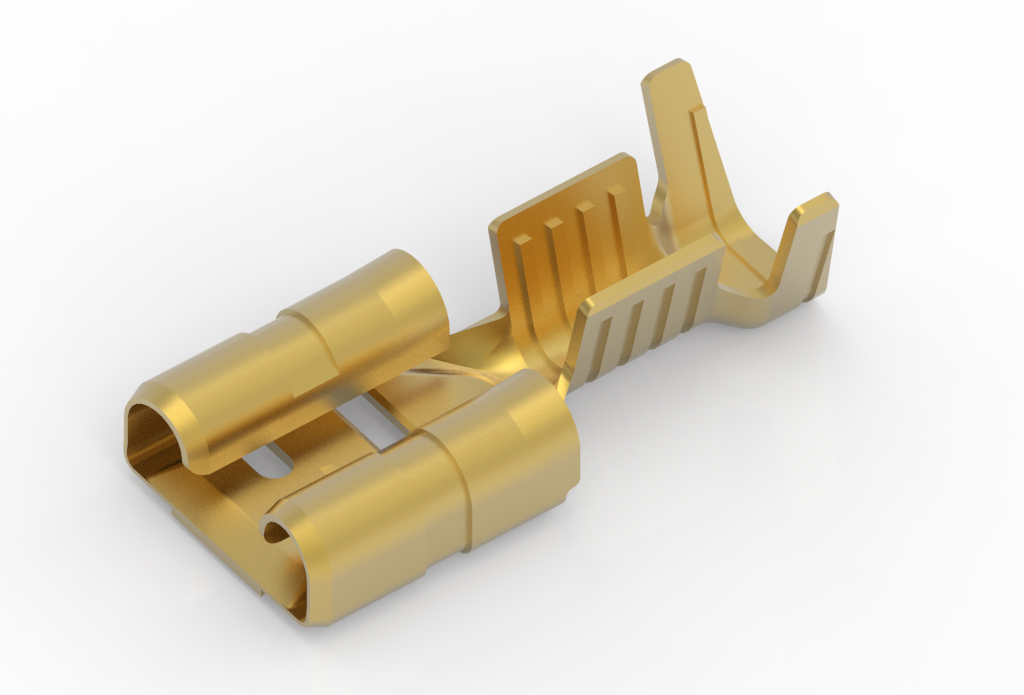

91432	0.80/3.00	0.35	BRASS	0.80	10000	4000		+

Multi-way connection receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
11019	0.80/3.00	0.35	BRASS	0.80	8000	4000		-
11020	0.35/1.00	0.35	BRASS	0.80	10000	4000		-

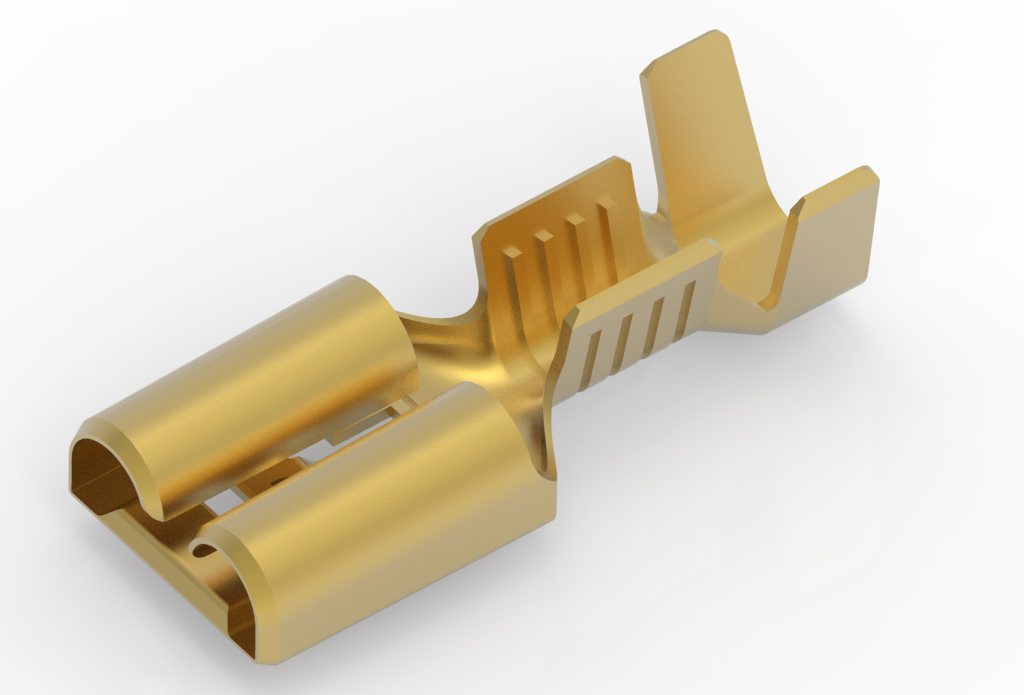

11102	0.80/3.00	0.35	PHOSPHORUS BRONZE	0.80	8000	4000		-
11127	2.50/6.00	0.40	BRASS	0.80	5000	4000		-
11161	0.35/1.00	0.35	PHOSPHORUS BRONZE	0.80	10000	4000		-
11162	2.50/6.00	0.40	PHOSPHORUS BRONZE	0.80	5000	4000		-

Multi-way connection receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
11081	0.35/1.00	0.35	BRASS	0.80	10000	4000		-

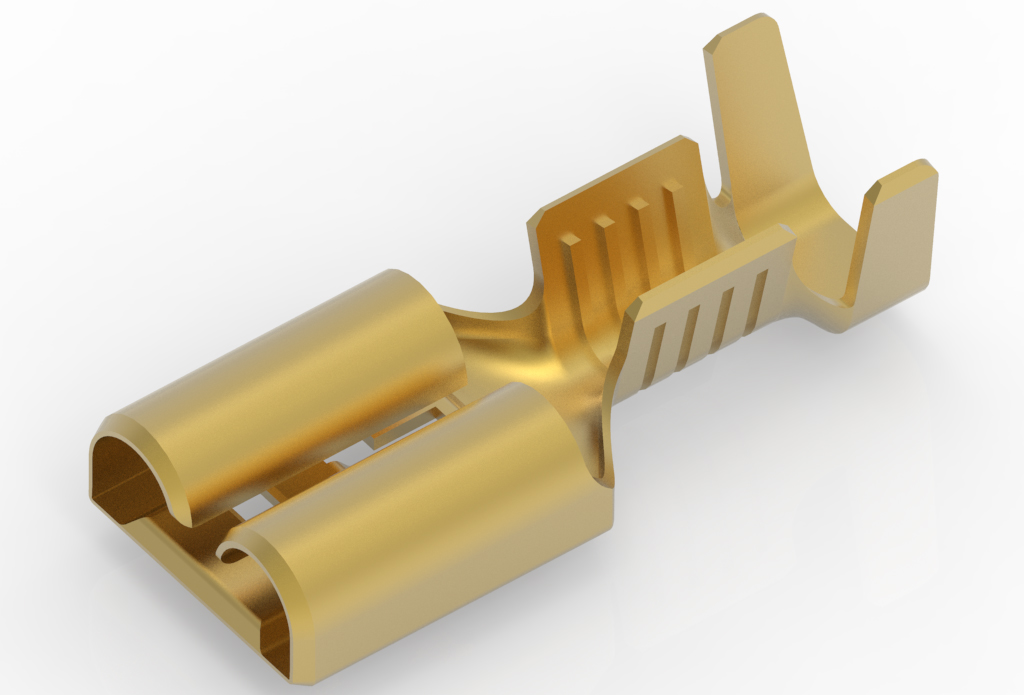

11082	0.80/3.00	0.35	BRASS	0.80	8000	4000		-
11104	2.50/6.00	0.40	BRASS	0.80	5000	4000		-
11348	0.80/3.00	0.35	BRASS	0.60	8000	4000		-
11360	0.80/3.00	0.35	BRASS	0.30	8000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

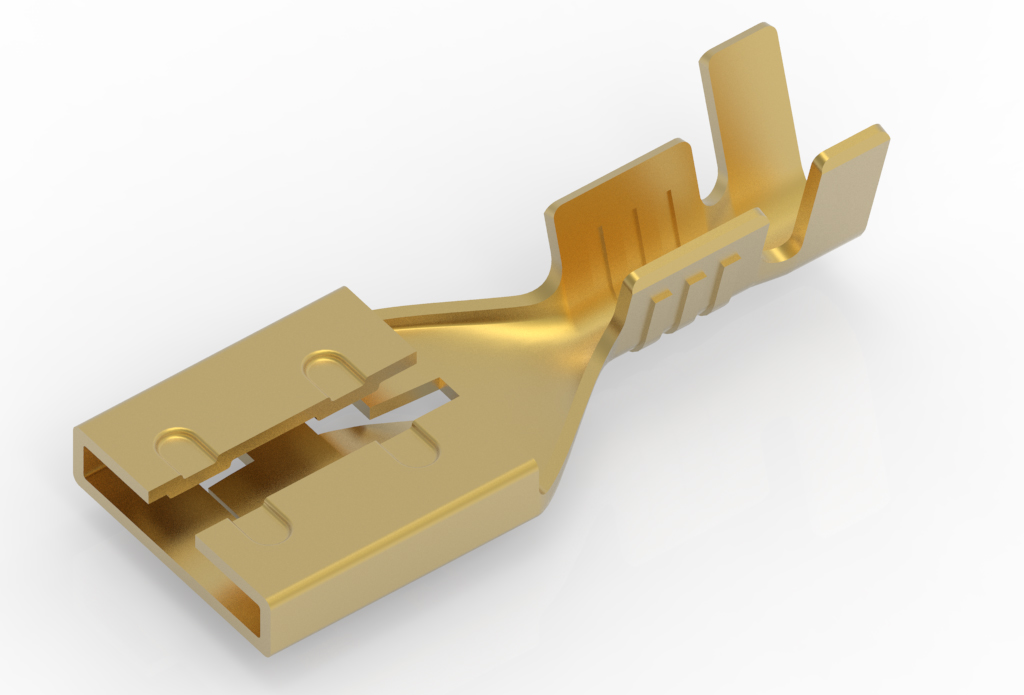

30088	0.80/2.00	0.35	BRASS	0.80	5000	4000		-
30089	2.00/5.00	0.35	BRASS	0.80	5000	4000		-

High withdrawal force receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
11130	0.35/1.00	0.40	BRASS	0.80	10000	4000		+

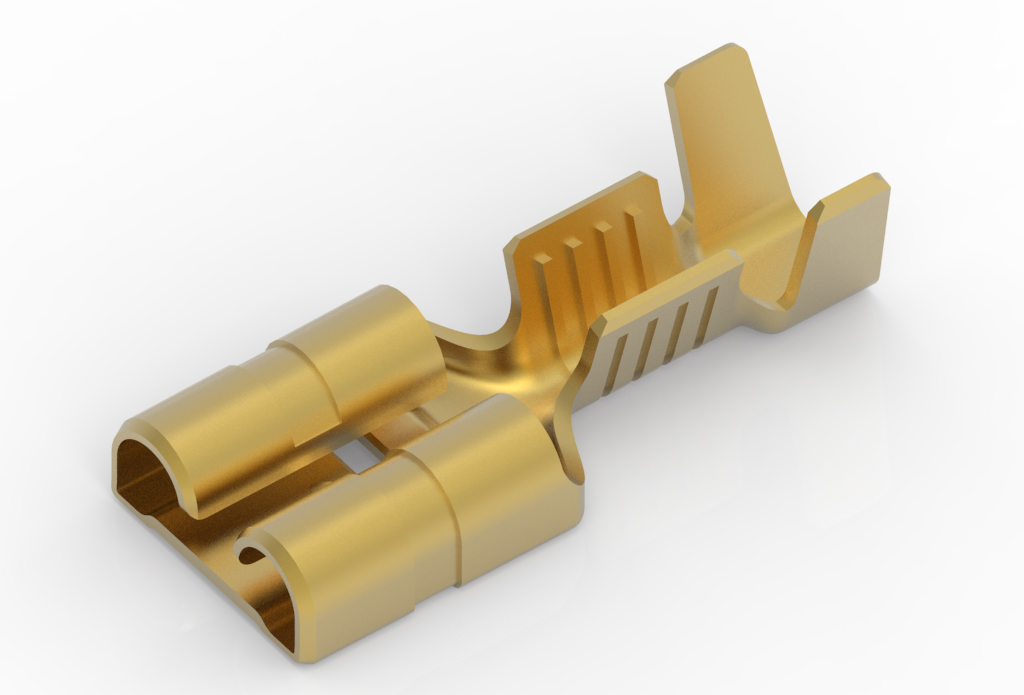

11131	0.80/3.00	0.40	BRASS	0.80	8000	4000		+
11132	2.50/6.00	0.45	BRASS	0.80	5000	4000		+

Low insertion force receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
11195	0.35/1.00	0.35	BRASS	0.80	10000	4000		+

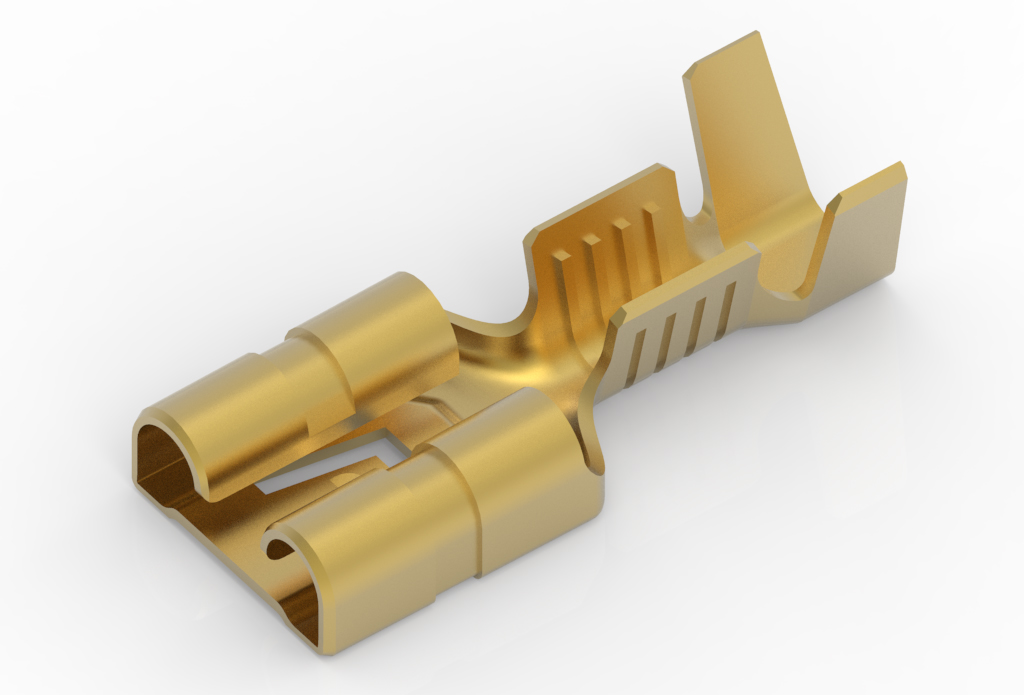

11196	0.80/3.00	0.35	BRASS	0.80	8000	4000		+

Flag-type receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
15465	0.35/1.00	0.40	BRASS	0.80	6000	4000		+

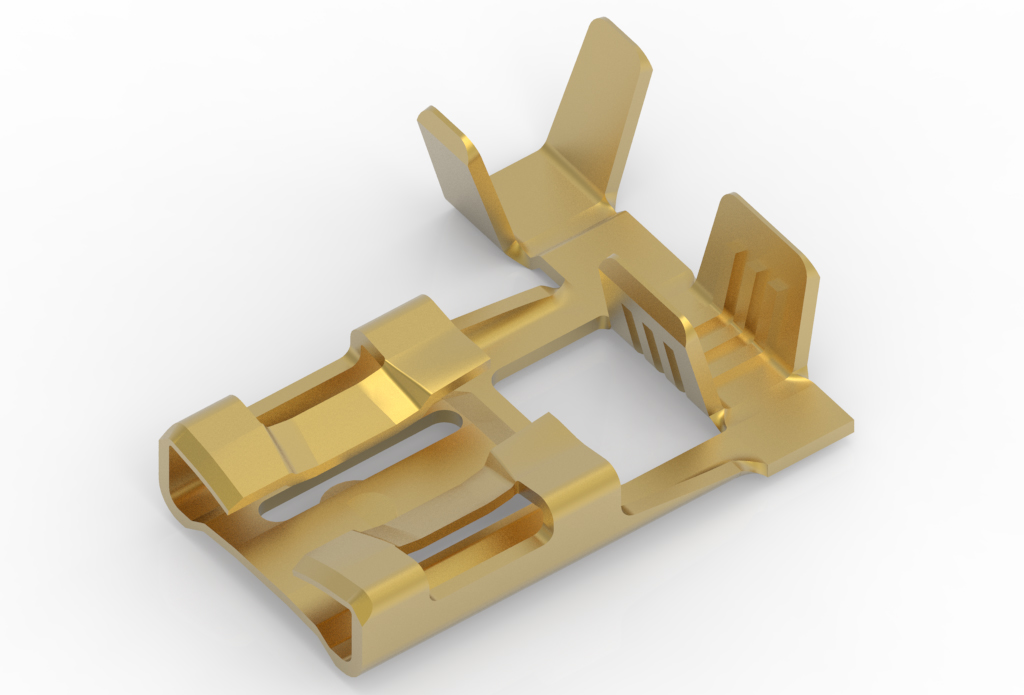

15466	0.80/3.00	0.40	BRASS	0.80	6000	4000		+

Positive lock receptacles

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

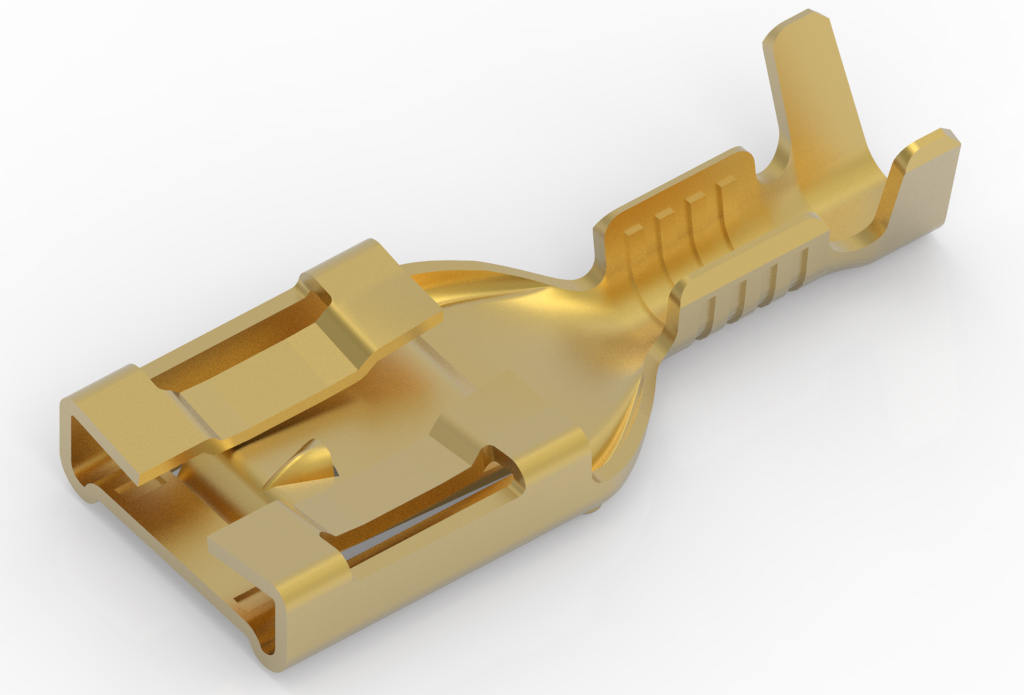

67454	0.35/1.00	0.40	BRASS	0.80	10000	4000		+
67455	0.80/3.00	0.40	BRASS	0.80	8000	4000		+

Positive lock flag-type receptacle

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related
62461	0.35/1.00	0.40	BRASS	0.80	6000	4000		+

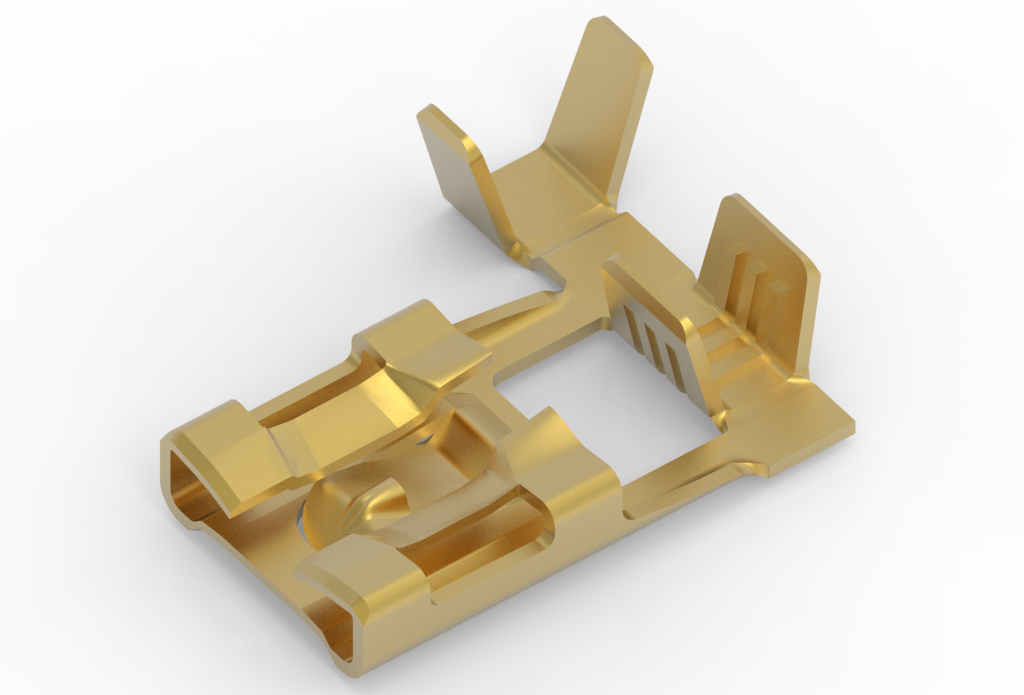

62462	0.80/3.00	0.40	BRASS	0.80	6000	4000		+

Special receptacle

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

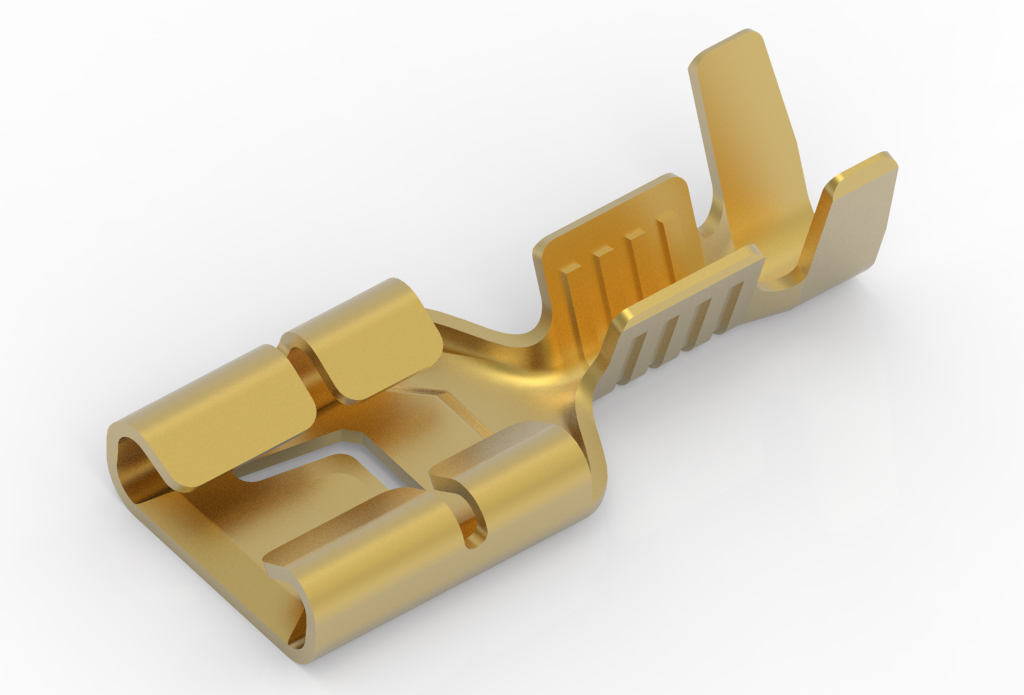

74336	0.50/2.00	0.35	BRASS	0.80	10000	4000		-

8.00 mm series

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related
98514	2.50/6.00	0.45	BRASS	5000	4000		+

Flag-type receptacles for multi-way connection

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

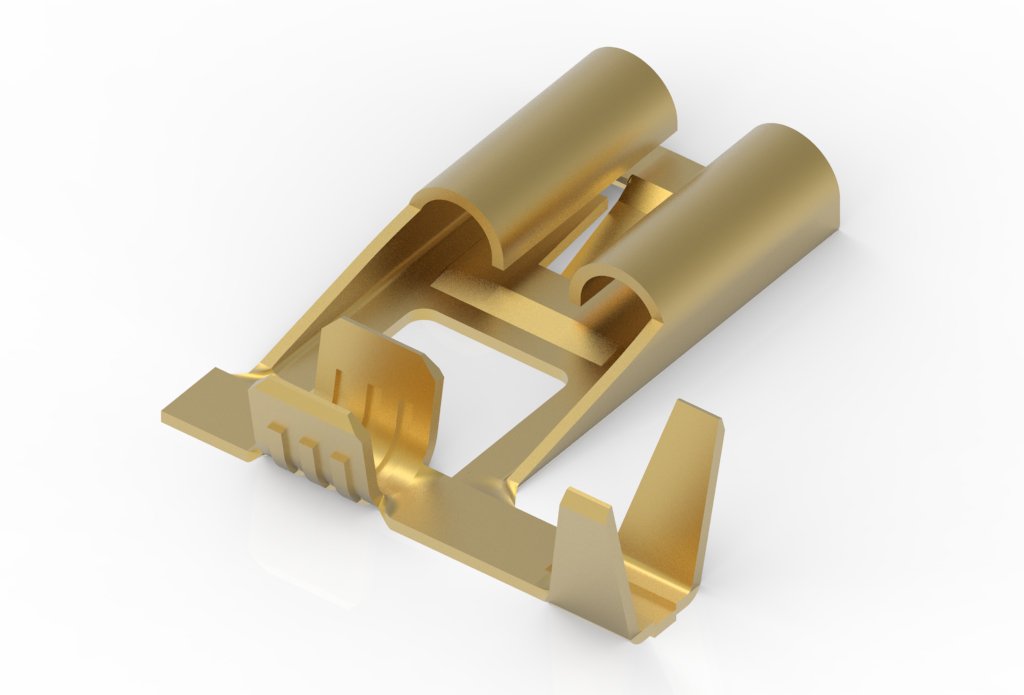

40139	0.80/3.00	0.40	BRASS	0.70	3500	4000		+
