Industrias Zeta

General purpose
Terminals

Specials

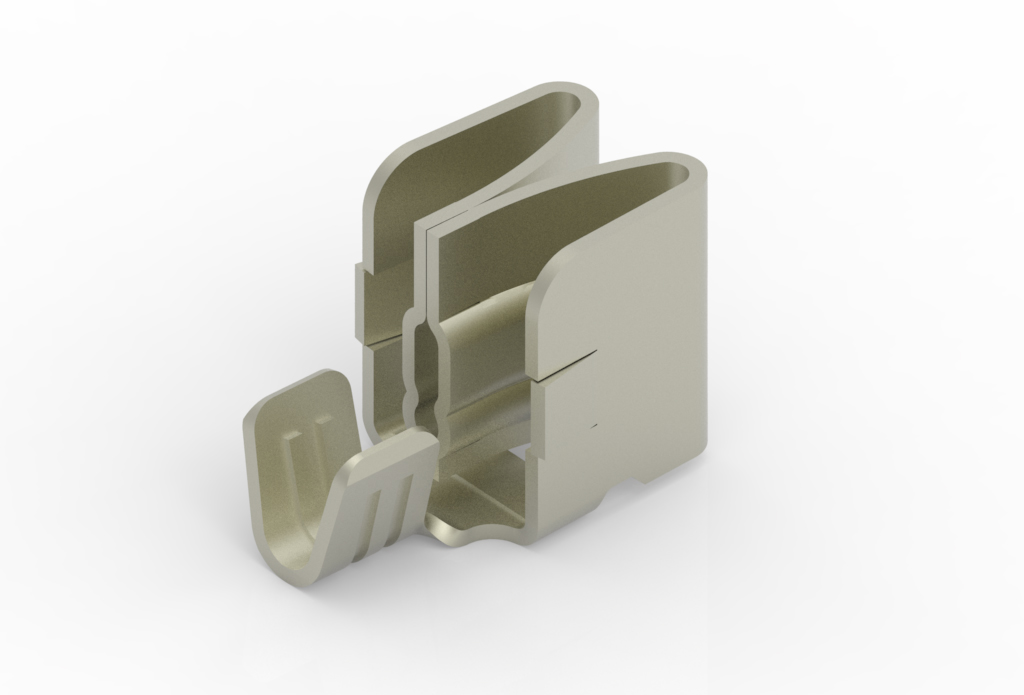

Lamp contact

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Drawing	Connector Related
85394	0.30 x 1.00	0.30	ALPACA	8000		-

Receptacle for 0,045" pin

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

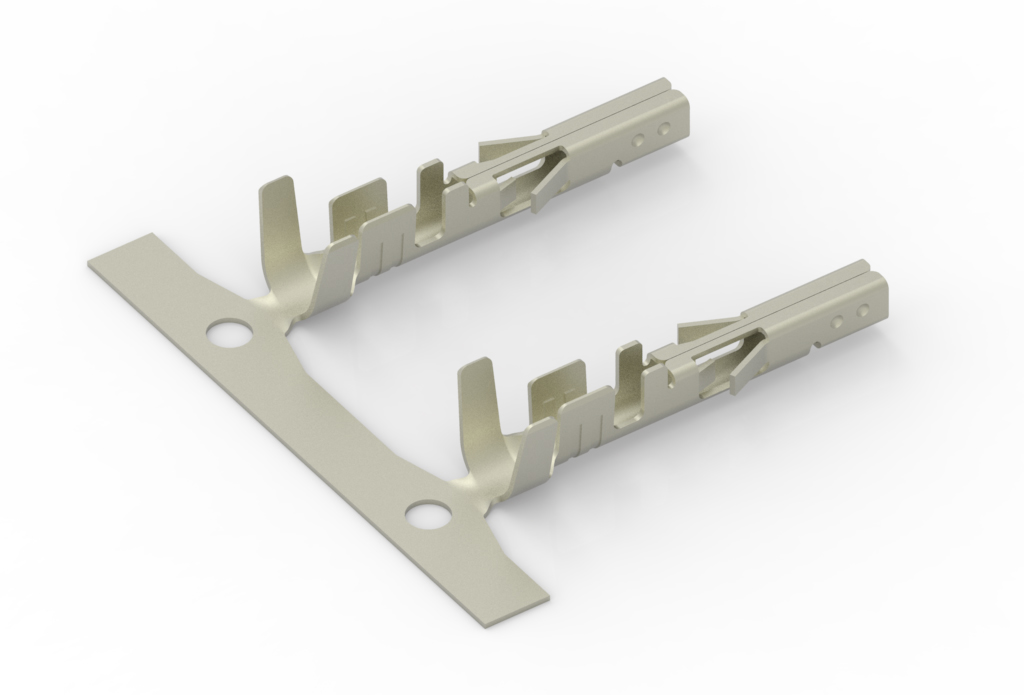

82385	0.25/0.80	0.20	BRASS	1.14	5000	5000		-

Receptacle for computer cord

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

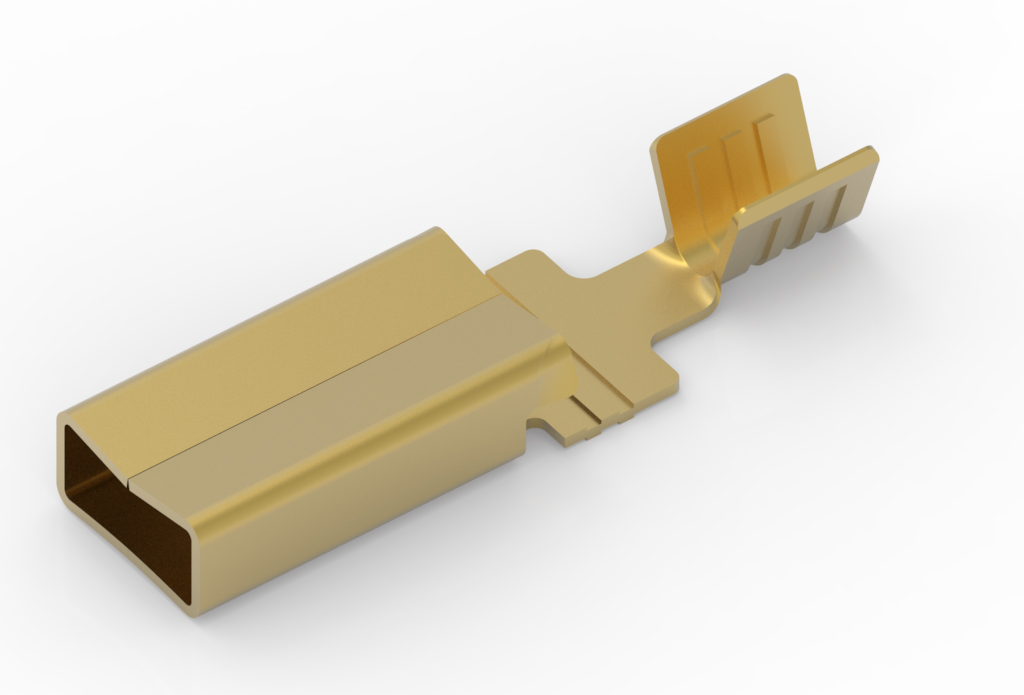

53411	0.50/1.50	0.30	BRASS	2.00	10000	4000		+

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Qty per bag	Drawing	Connector Related

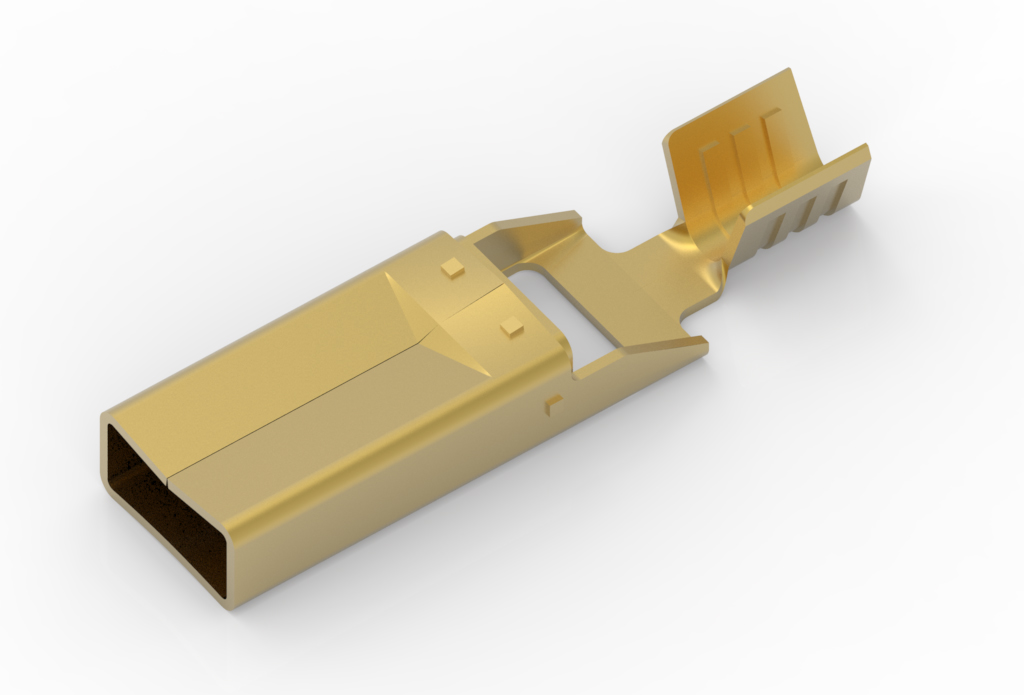

53501	0.50/1.50	0.30	BRASS	2.00	10000	4000		+

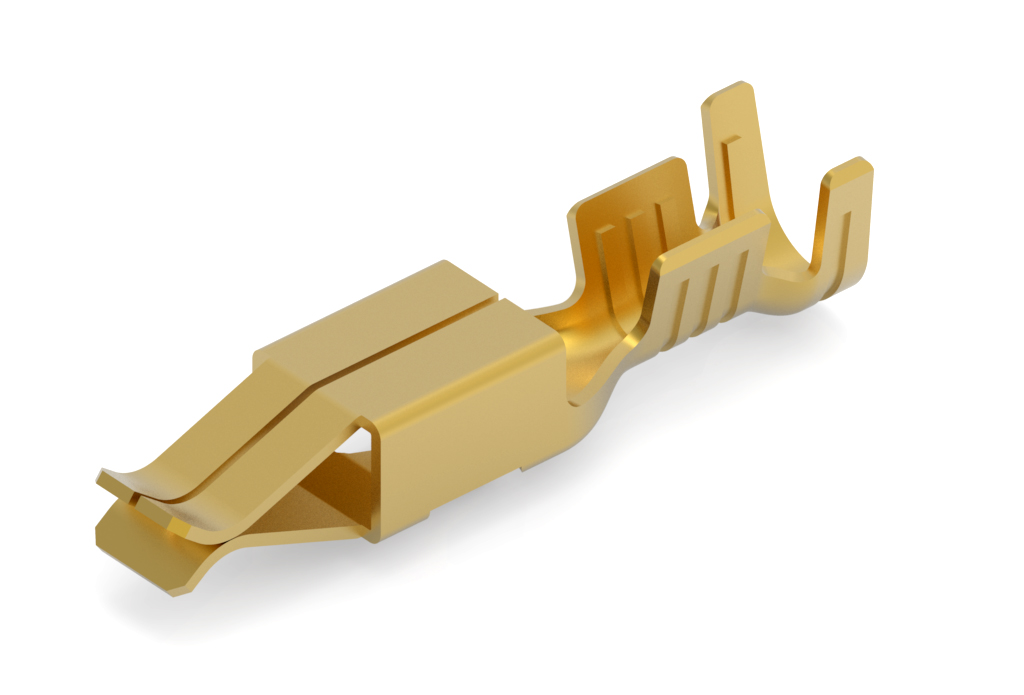

Mini timer

Code	Wire range mm²	Material thickness mm	Material	Fits tab mm	Qty per reel	Drawing	Connector Related
92435	0.50/1.50	0.30	BRASS	0.80	5000		-

Printed circuit board terminals

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related

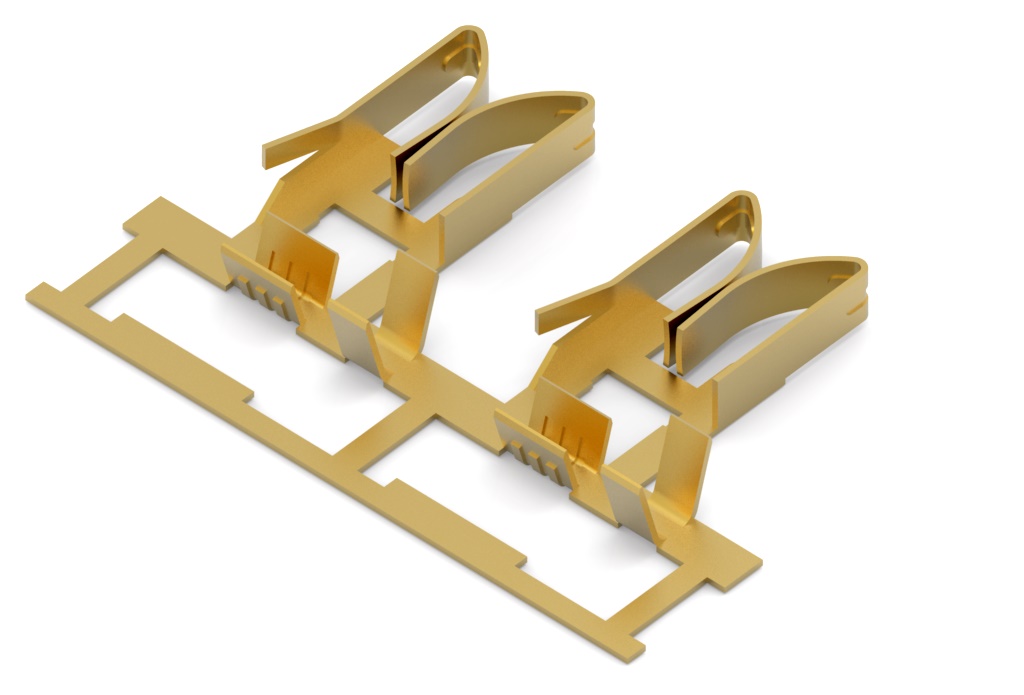

31094	0.50/1.50	0.32	BRASS	4000	4000		-

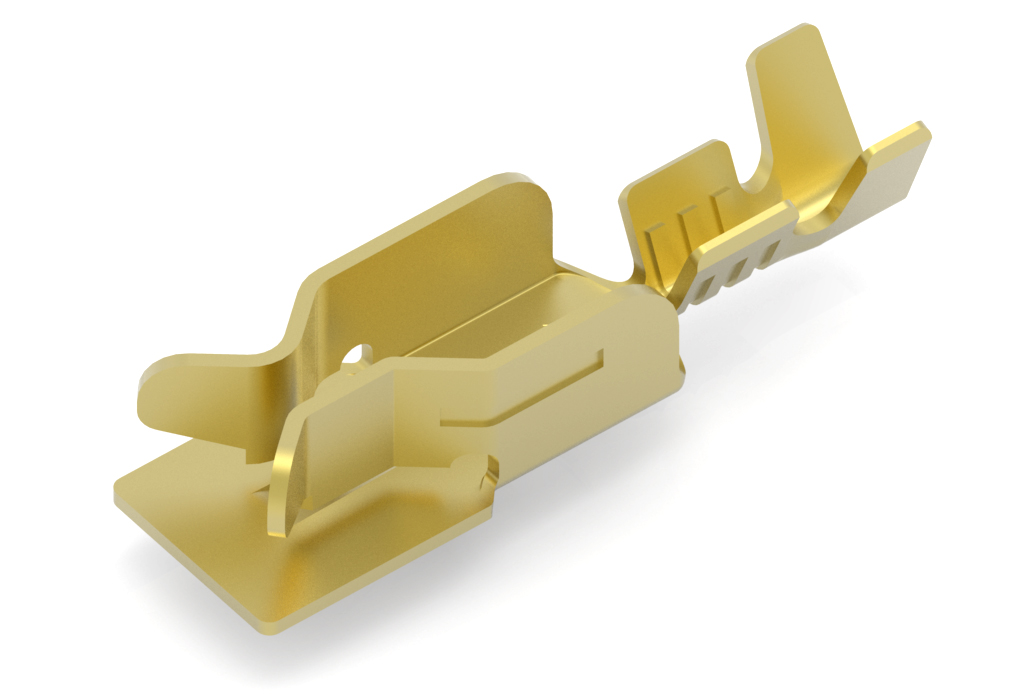

Lamp seat terminals

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related
78368	0.50/1.50	0.35	BRASS	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related

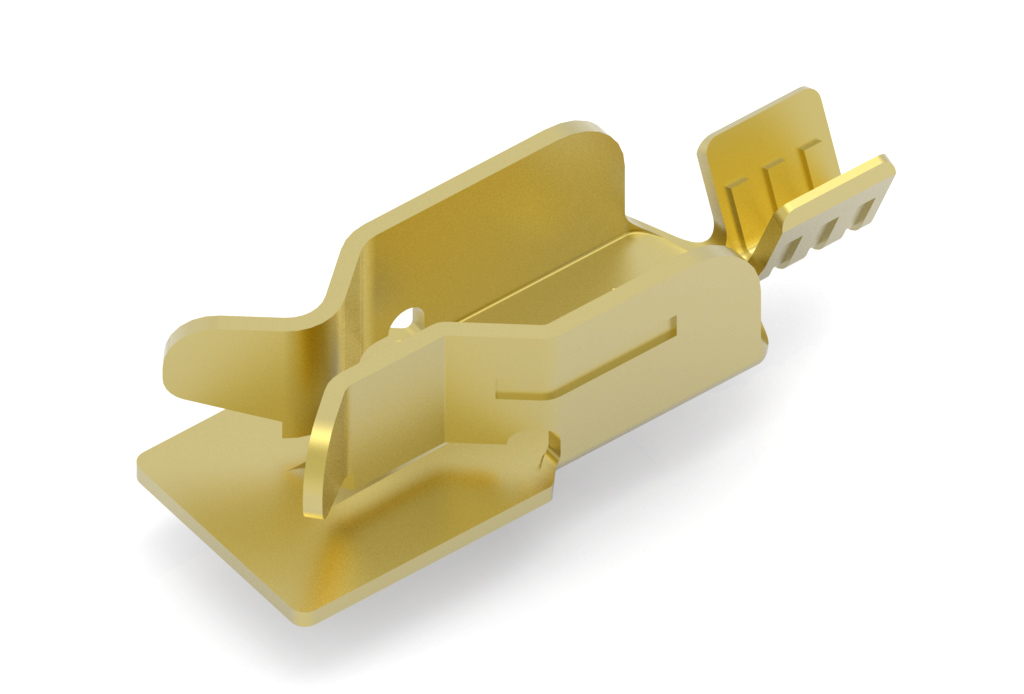

78399	0.50/1.50	0.35	BRASS	10000	4000		+

Contact button terminals

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Drawing	Connector Related

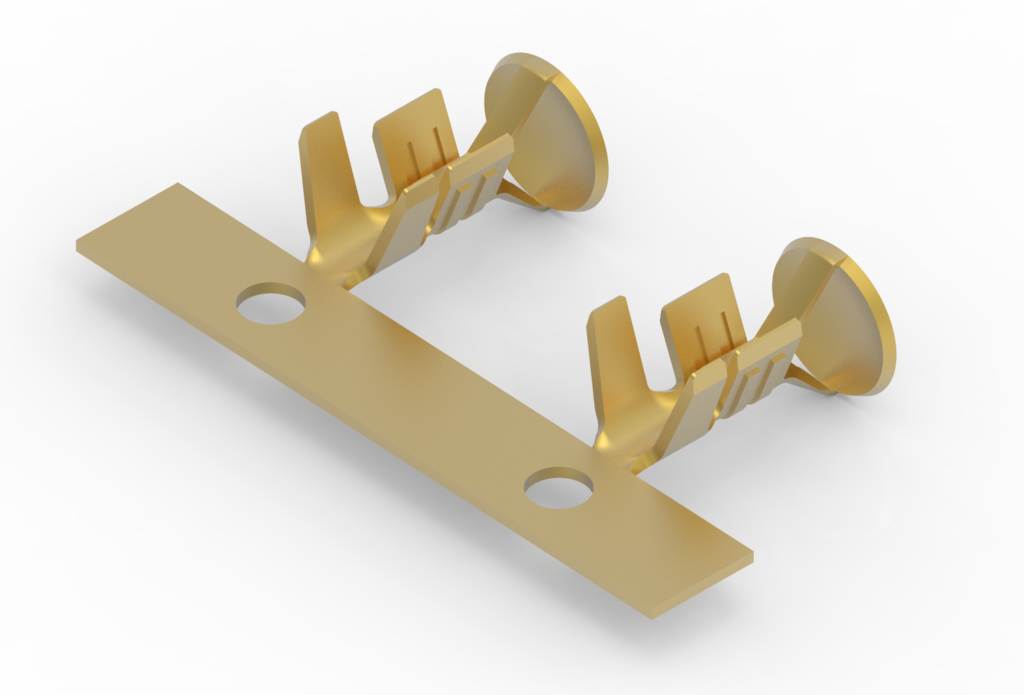

38136	0.50/1.50	0.40	BRASS	10000		-
38400	0.50/1.50	0.40	BRASS	10000		-

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Drawing	Connector Related

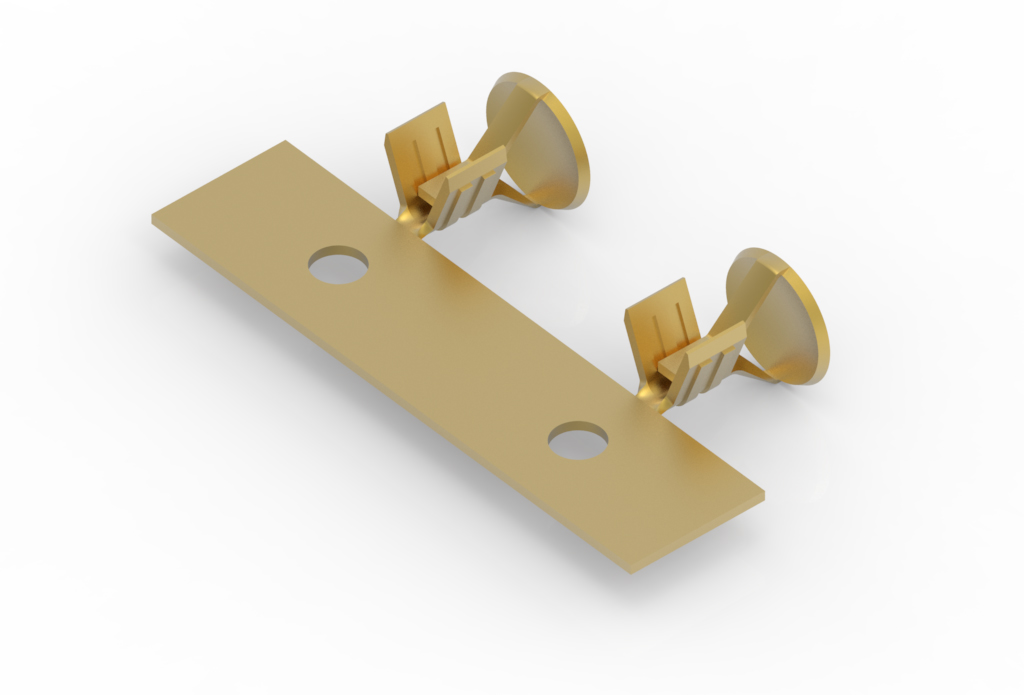

38330	0.50/1.50	0.40	BRASS	10000		-
38359	0.50/1.50	0.40	BRASS	10000		-

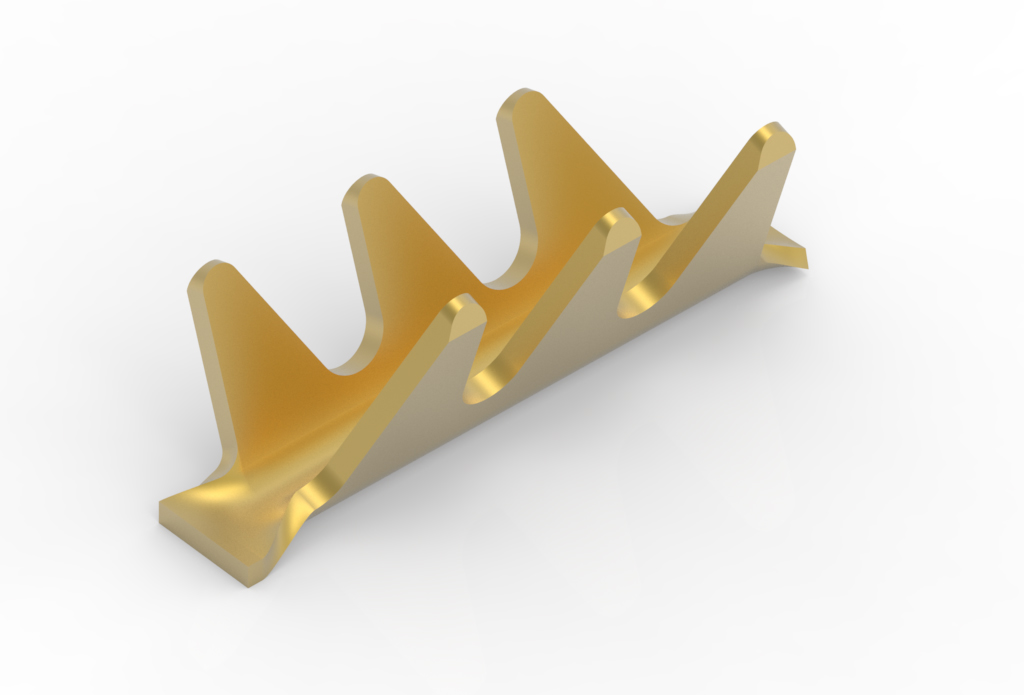

End splices

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related
68289	0.50/0.75	0.30	BRASS	25000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related

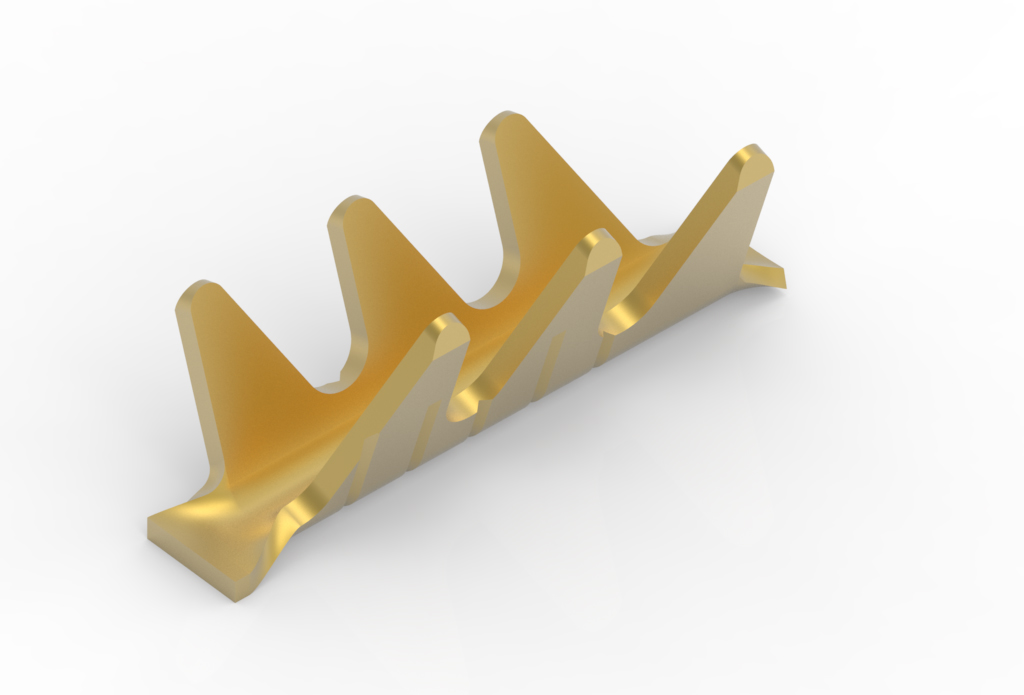

68371	0.50/0.75	0.30	BRASS	25000	4000		-

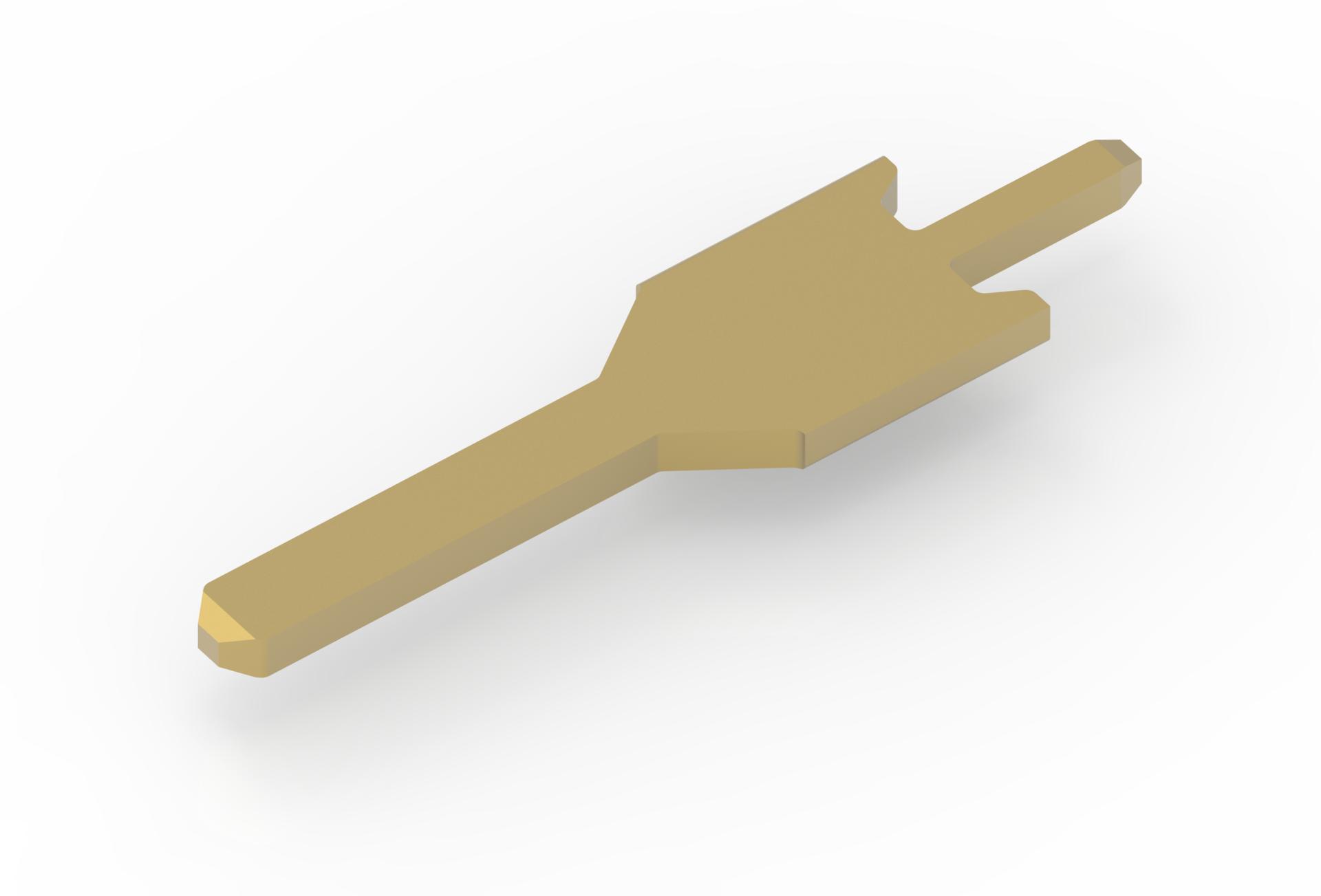

Printed circuit board terminals 0.80x1.52 mm

Code	Material thickness mm	Material	Qty per bag	Drawing	Connector Related
96509	0.80	BRASS	10000		-
