Industrias Zeta

General purpose
Terminals

Tabs

2.80 mm series

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related
44150	0.75/1.50	0.80	BRASS	0.8	15000	4000		-

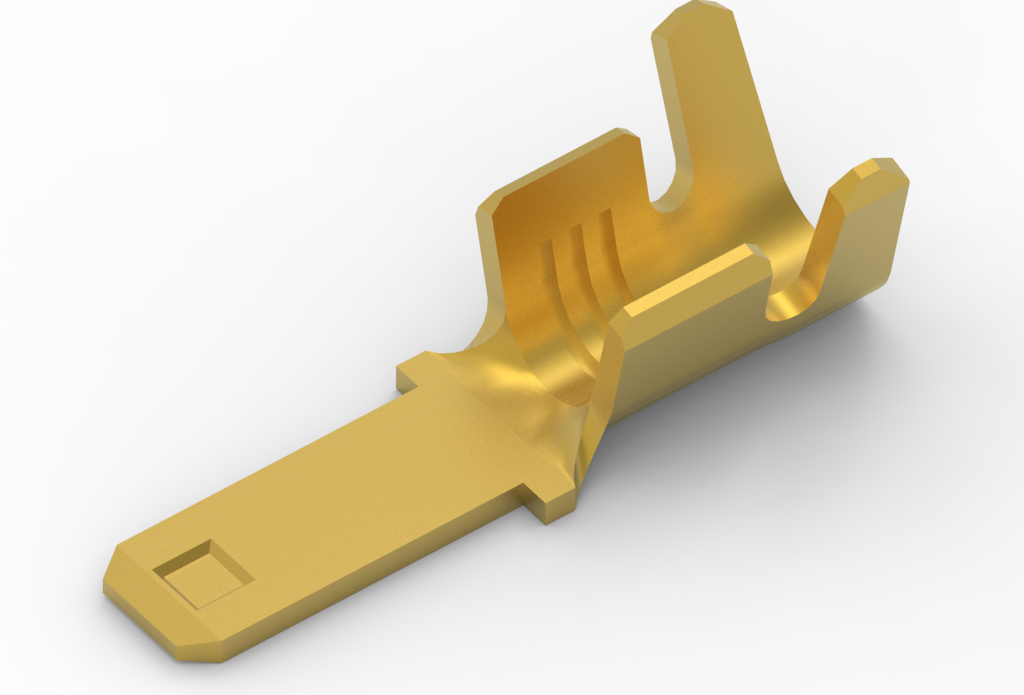

44157	0.50/1.50	0.50	BRASS	0.5	15000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related
44345	0.50/1.50	0.50	BRASS	0.5	15000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

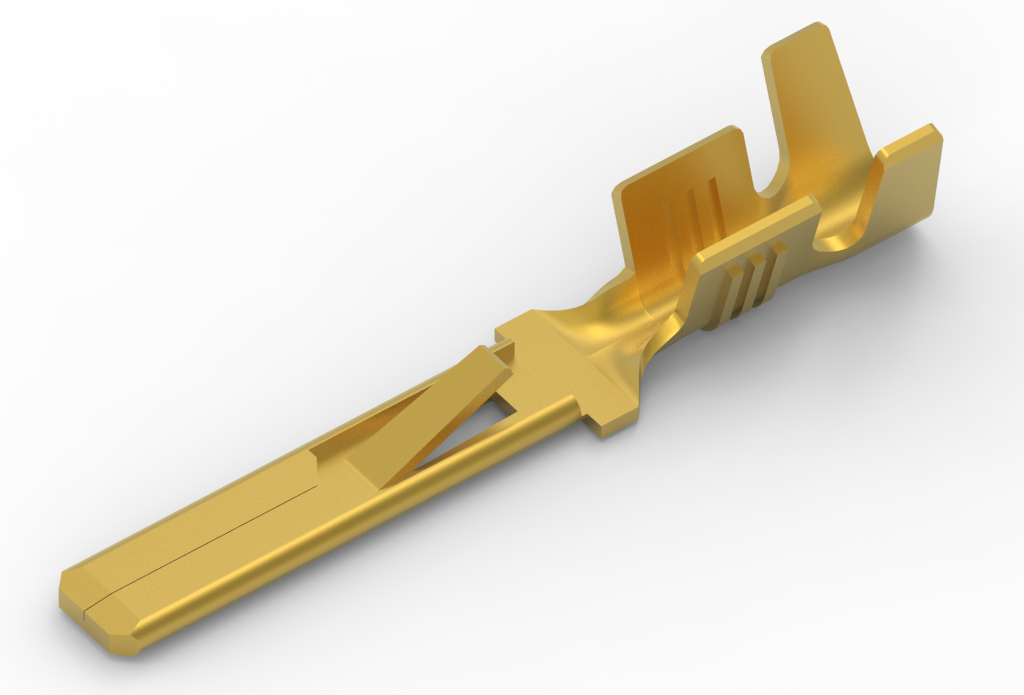

45154	0.50/1.50	0.38	BRASS	0.8	10000	4000		+

4.75 mm series

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

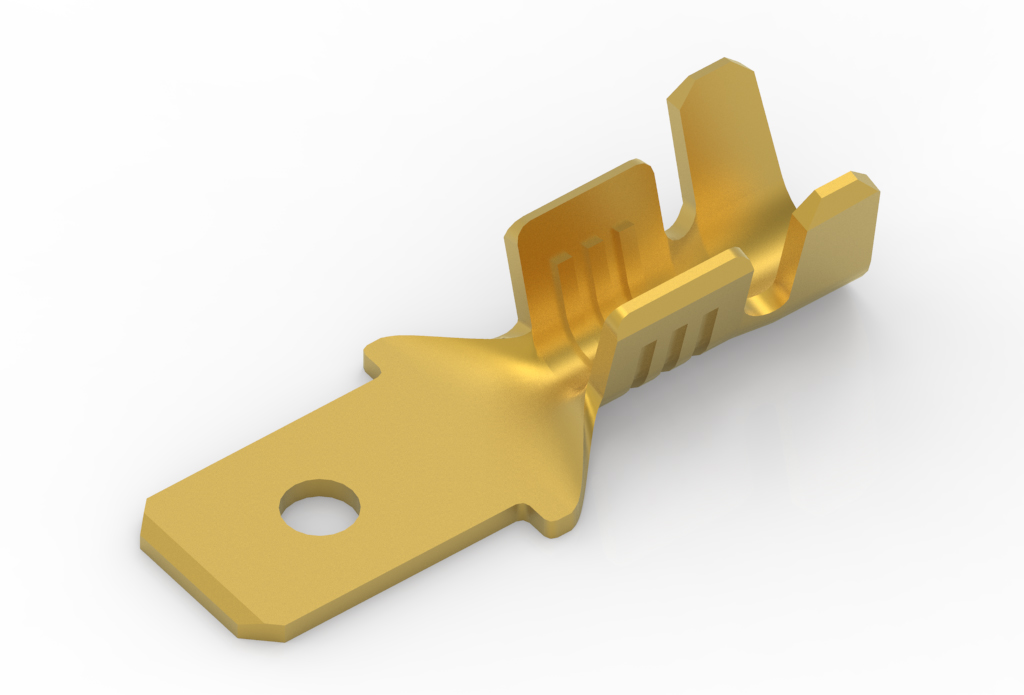

75342	0.50/2.00	0.50	BRASS	0.5	10000	4000		-

5.00 mm series

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

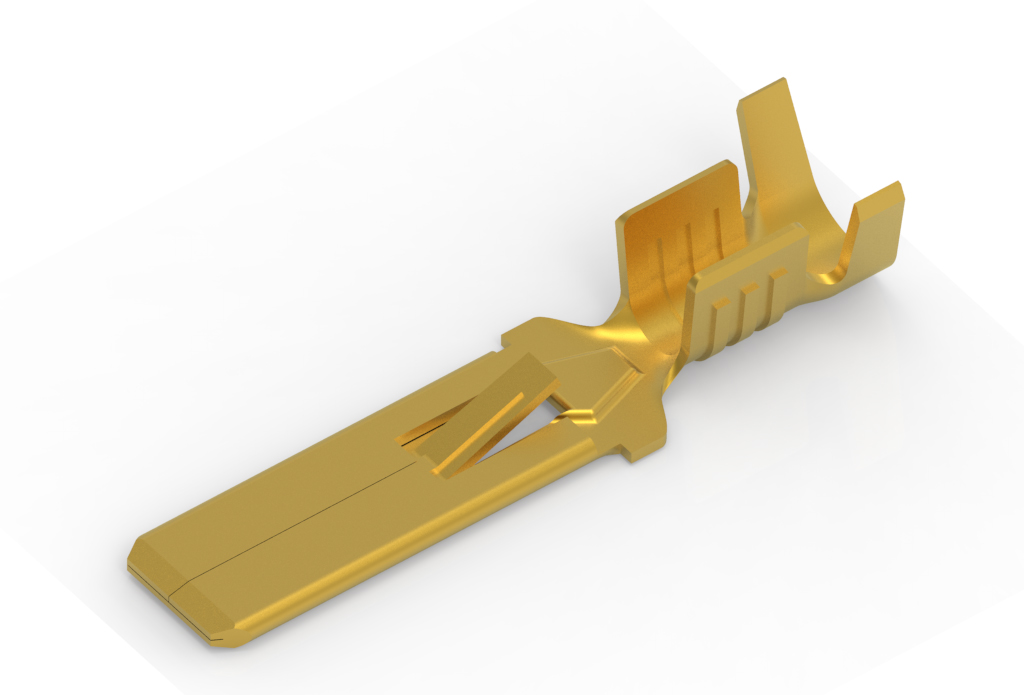

35122	0.80/2.50	0.38	BRASS	0.8	7000	4000		-
35307	0.80/2.50	0.38	BRASS	0.8	7000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

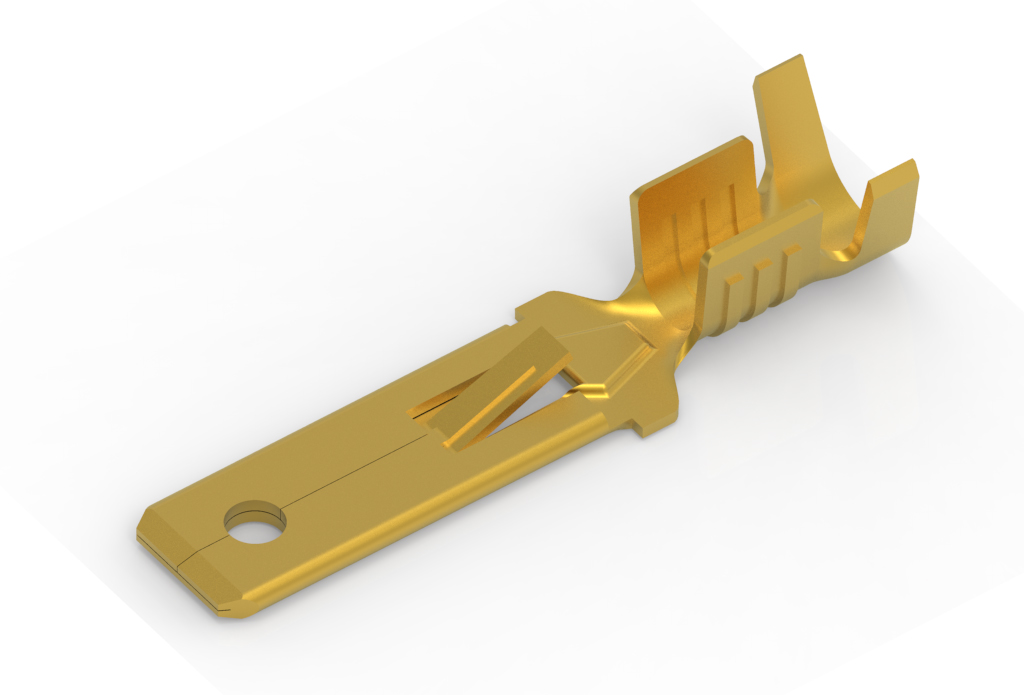

35123	0.80/2.50	0.38	BRASS	0.8	7000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

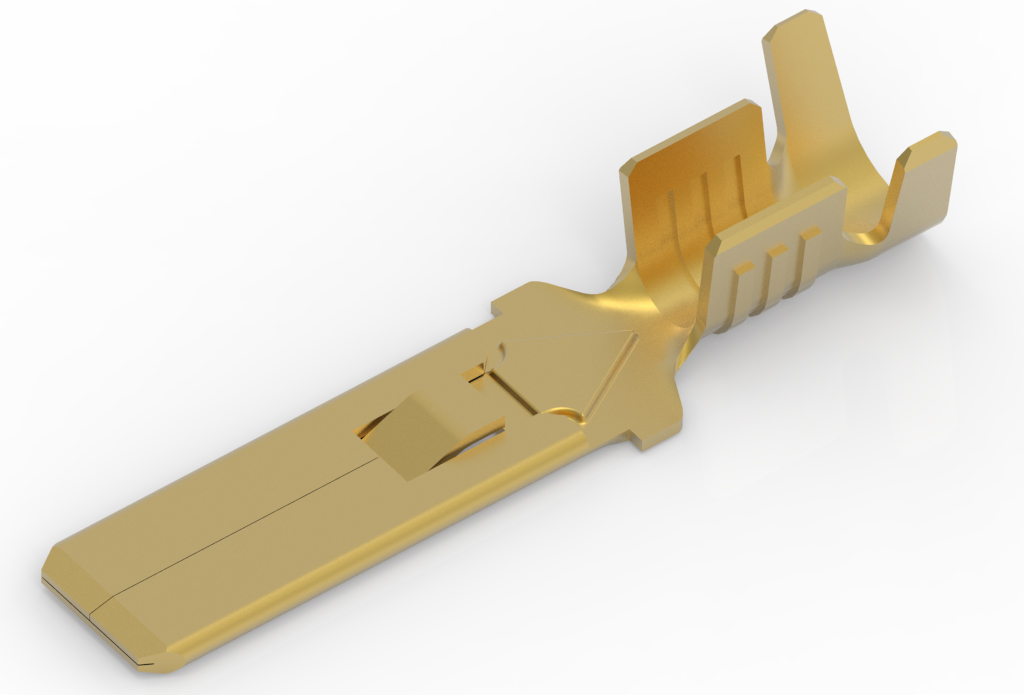

54208	0.80/2.50	0.38	BRASS	0.8	8000	4000		-

6.35 mm series

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related
12008	0.35/1.00	0.38	BRASS	0.8	8000	4000		+

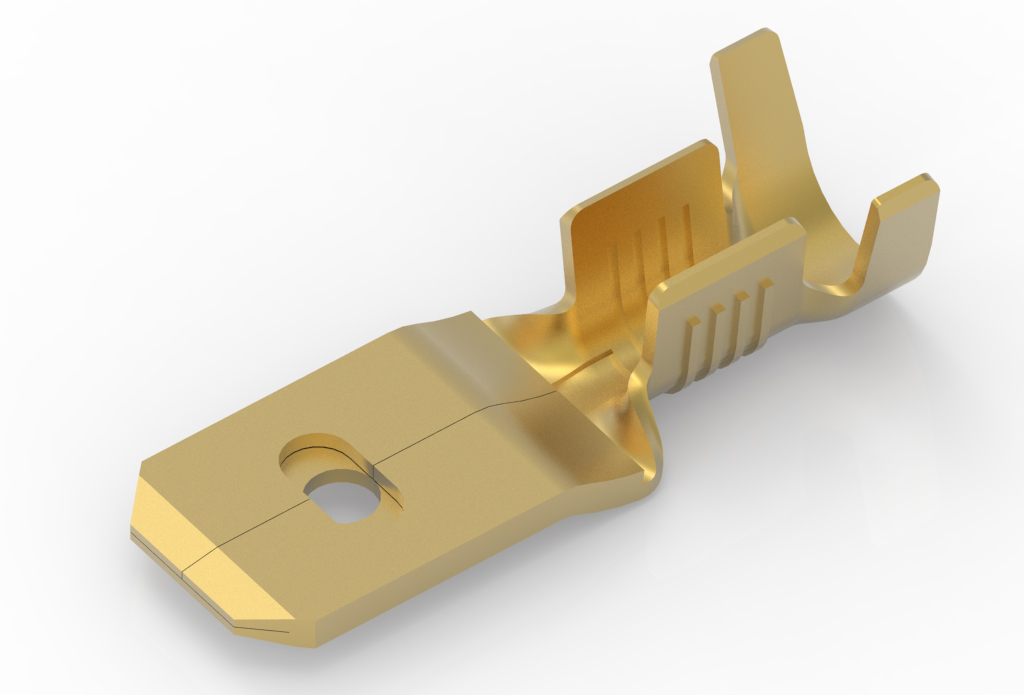

12009	0.80/3.00	0.38	BRASS	0.8	8000	4000		+

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

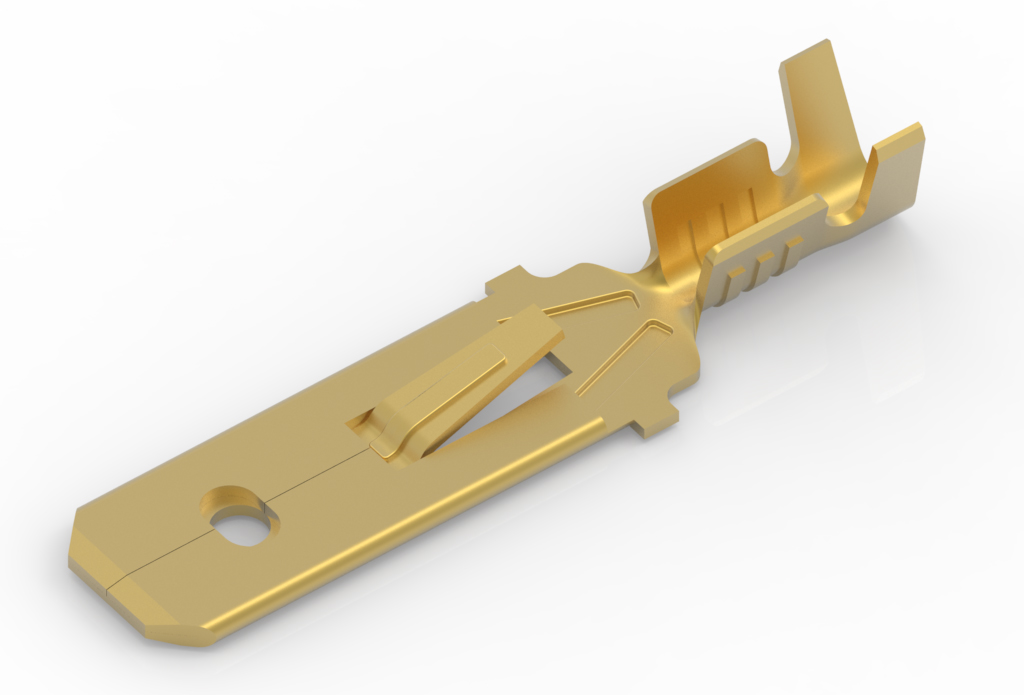

22043	0.50/1.50	0.38	BRASS	0.8	5000	4000		-
22044	1.00/3.00	0.38	BRASS	0.8	5000	4000		-
22284	1.00/3.00	0.38	PHOSPHORUS BRONZE	0.8	5000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related
22037	1.00/3.00	0.38	BRASS	0.8	5000	4000		-

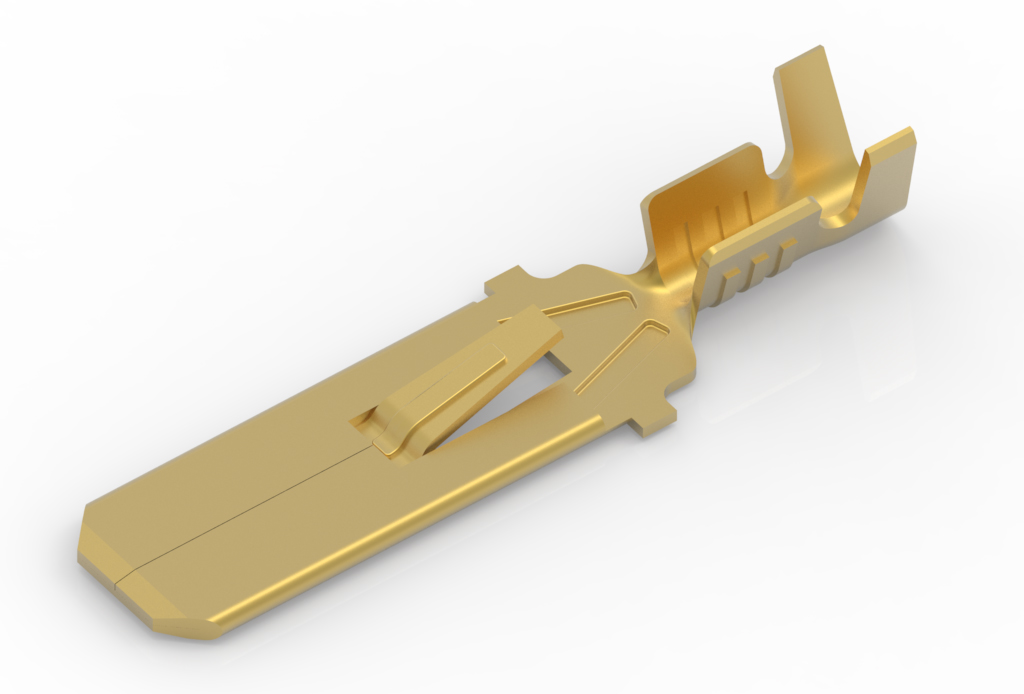

22045	0.50/1.50	0.38	BRASS	0.8	5000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Tab thickness mm	Qty per reel	Qty per bag	Drawing	Connector Related

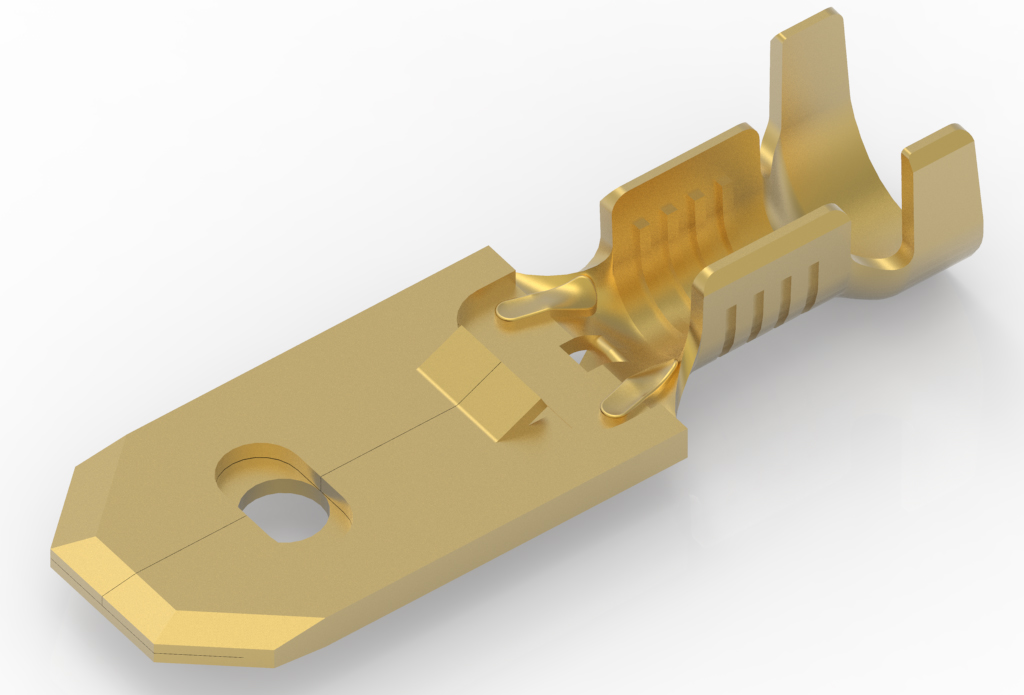

73334	0.50/1.50	0.38	BRASS	0.8	8000	4000		+
