Industrias Zeta

General purpose
Terminals

Rings

Rings

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

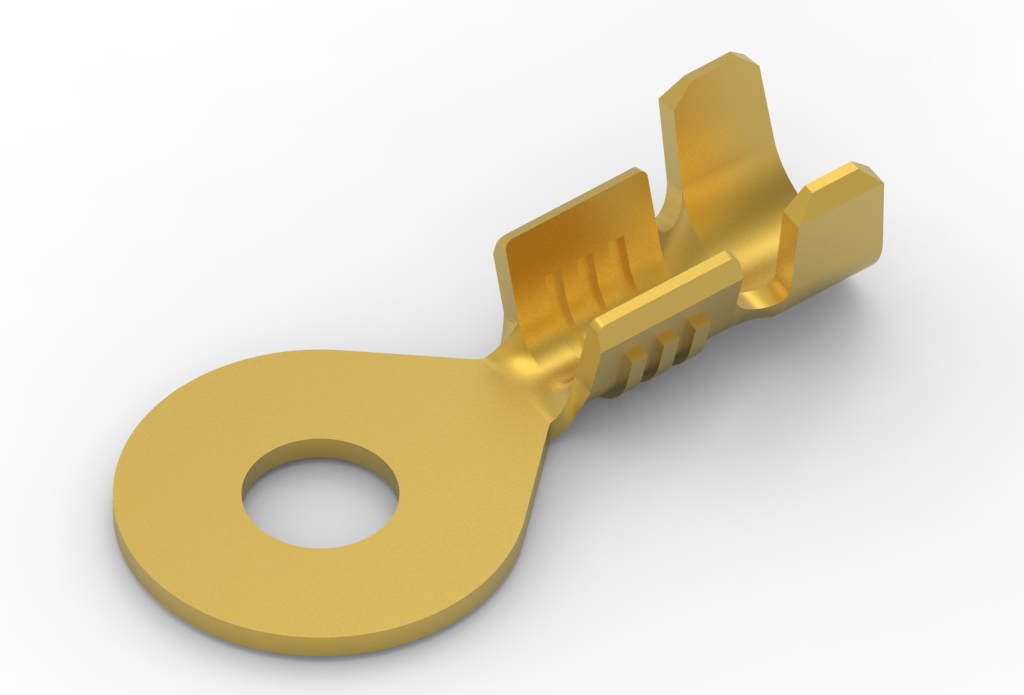

10001	0.50/1.50	0.50	BRASS	3.20	10000	4000		-
10002	0.50/1.50	0.50	BRASS	4.25	10000	4000		-
10003	0.50/1.50	0.50	BRASS	5.25	10000	4000		-
10092	0.75/1.50	0.75	BRASS	3.20	10000	4000		-
10286	0.50/1.50	0.60	BRASS	5.25	10000	4000		-
10339	0.50/1.50	0.50	BRASS	3.60	10000	4000		-
10349	0.50/2.00	0.50	BRASS	2.60	10000	4000		-
10420	0.50/2.00	0.51	STEEL	5.25	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

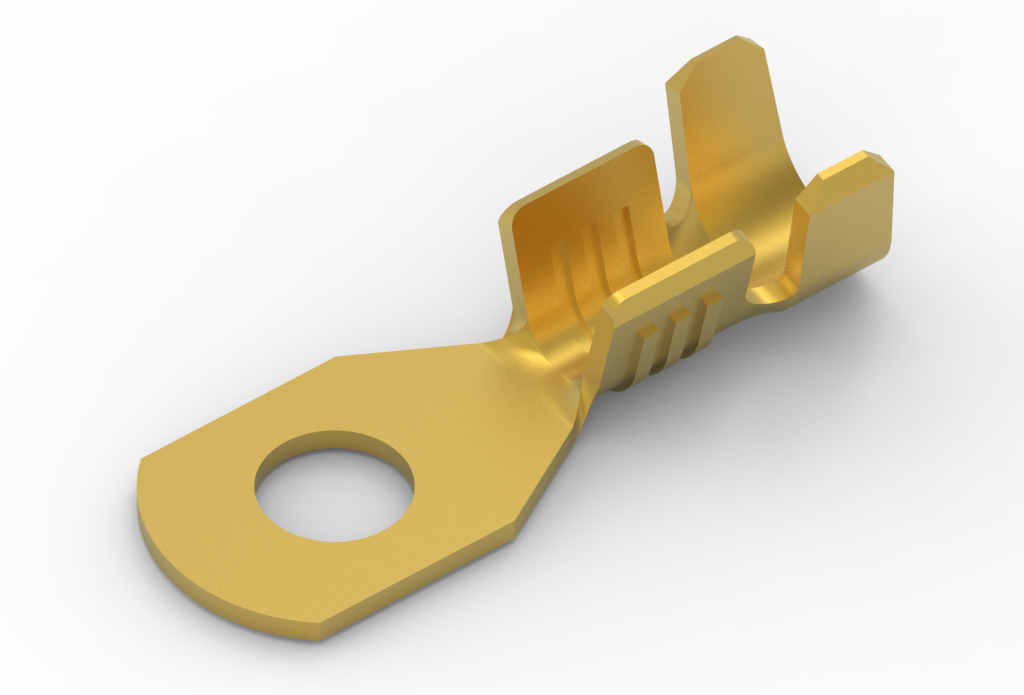

10014	0.50/2.00	0.50	BRASS	3.25	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

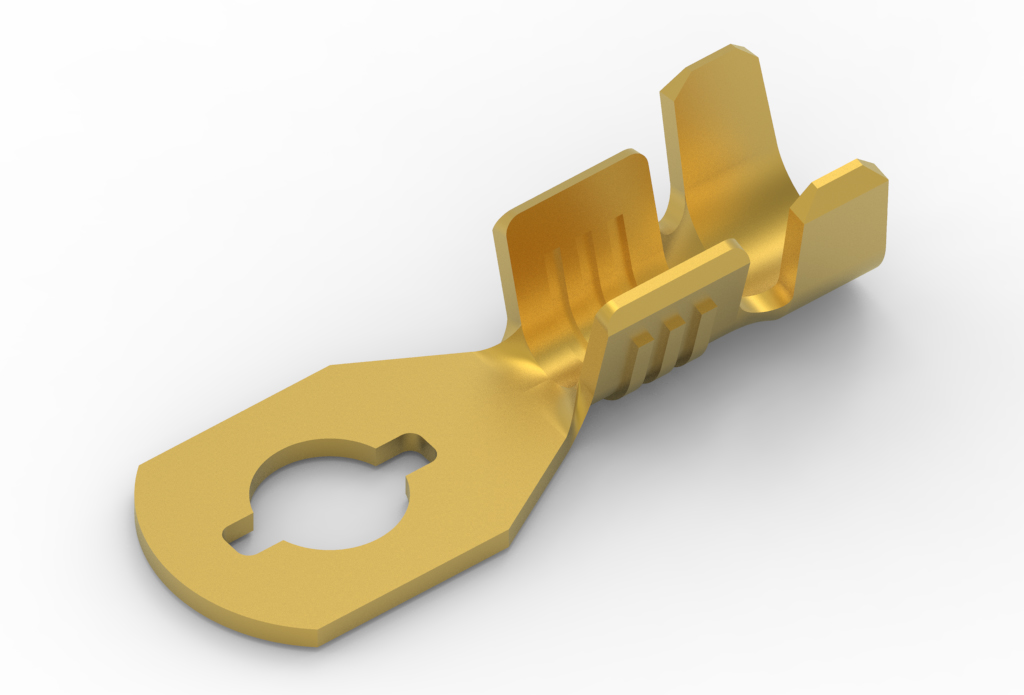

10036	0.50/2.00	0.50	BRASS	3.25	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

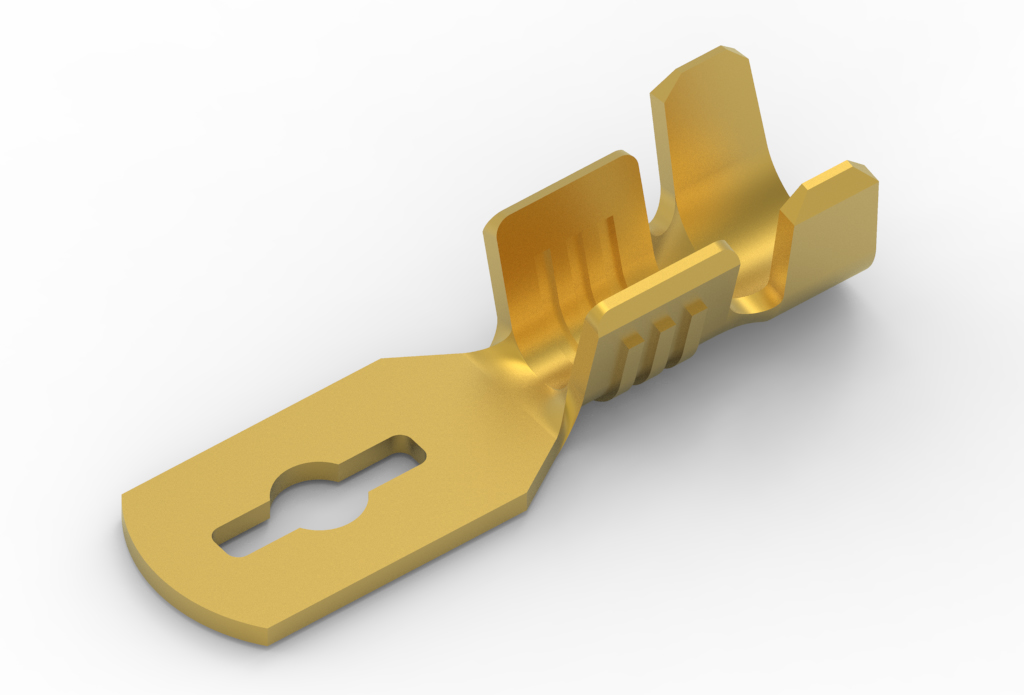

10046	0.50/2.00	0.50	BRASS	2.00	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

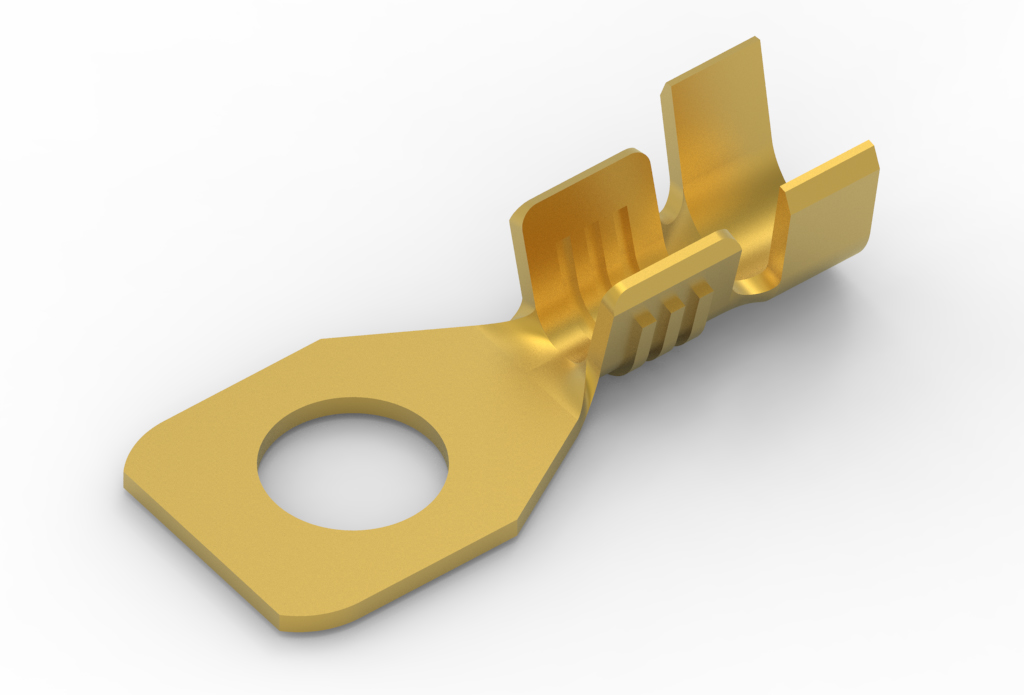

10052	0.50/2.00	0.50	BRASS	4.25	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

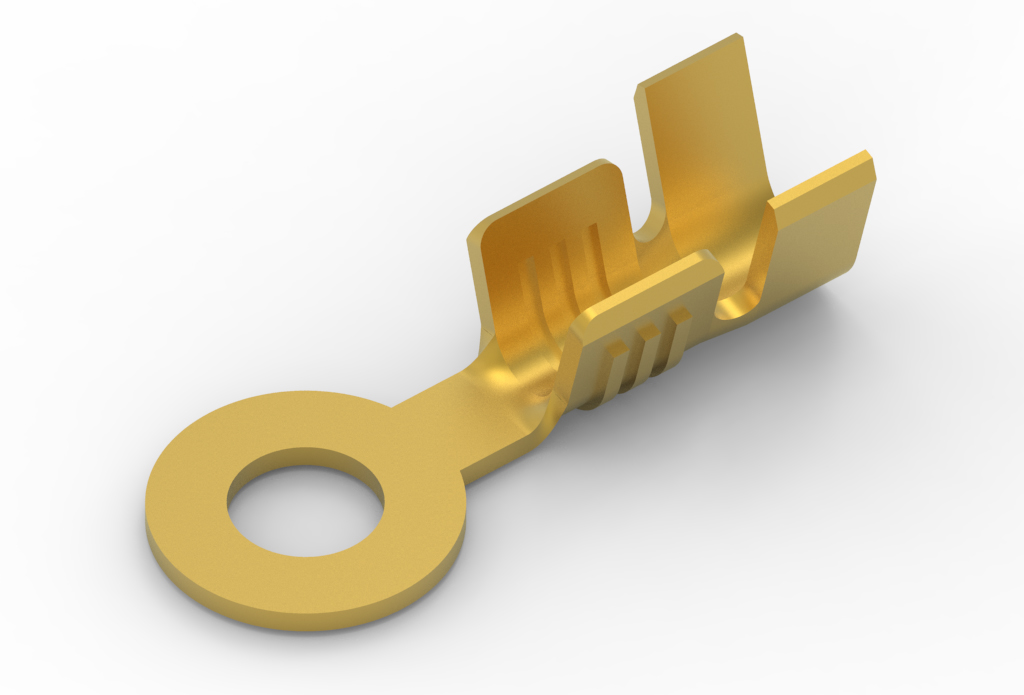

10071	0.50/2.00	0.50	BRASS	3.20	10000	4000		-
10072	0.50/2.00	0.50	BRASS	4.25	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

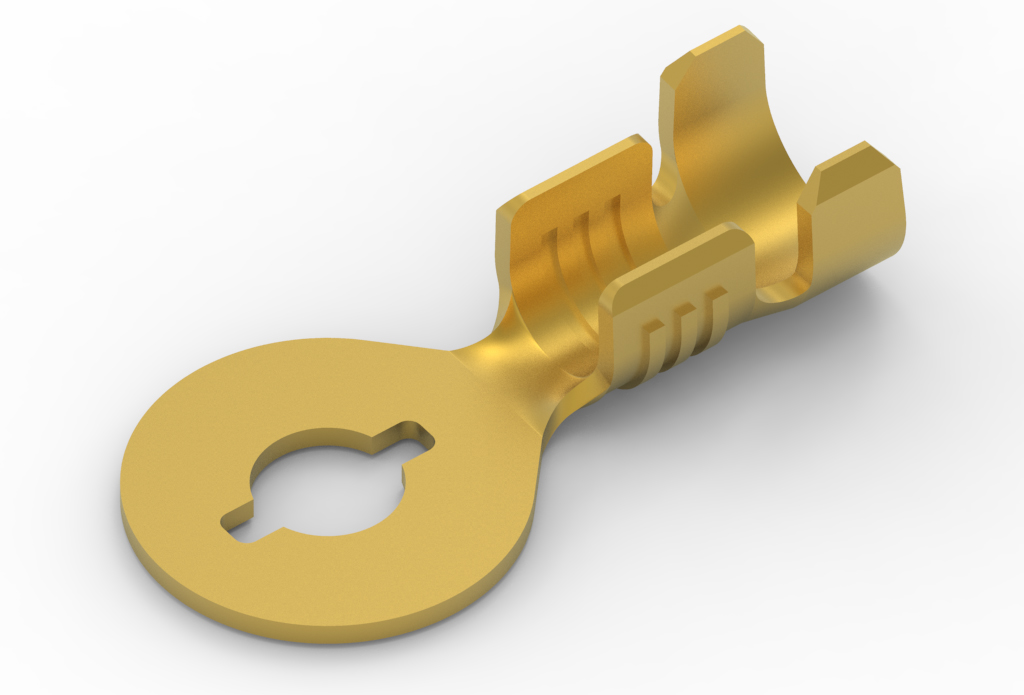

10097	0.50/1.50	0.50	BRASS	3.60	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

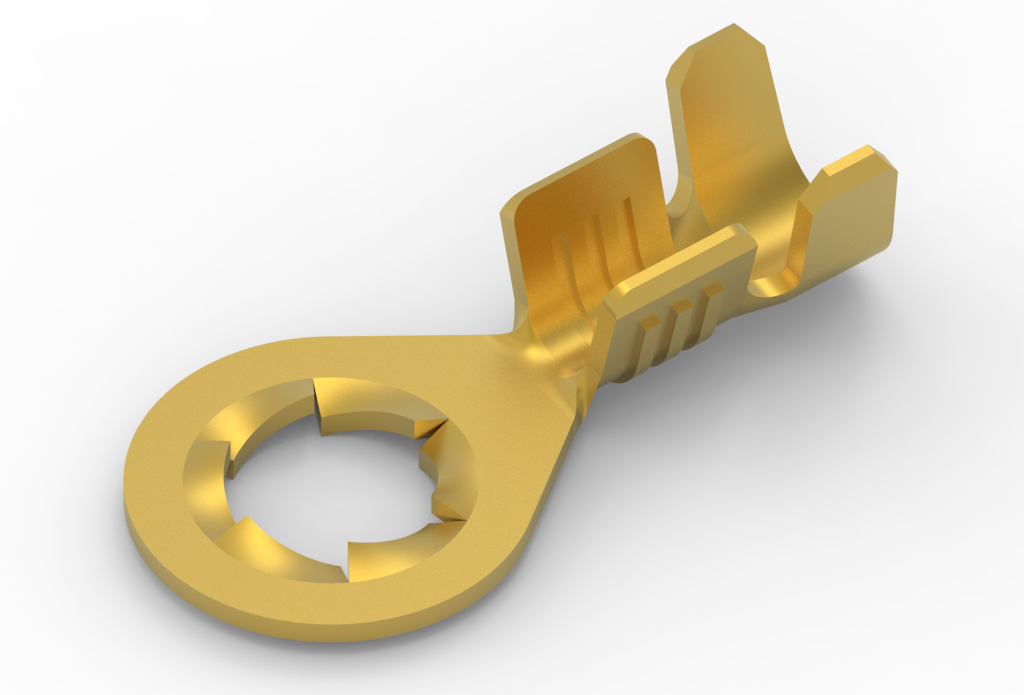

10300	0.50/1.50	0.50	BRASS	4.35	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

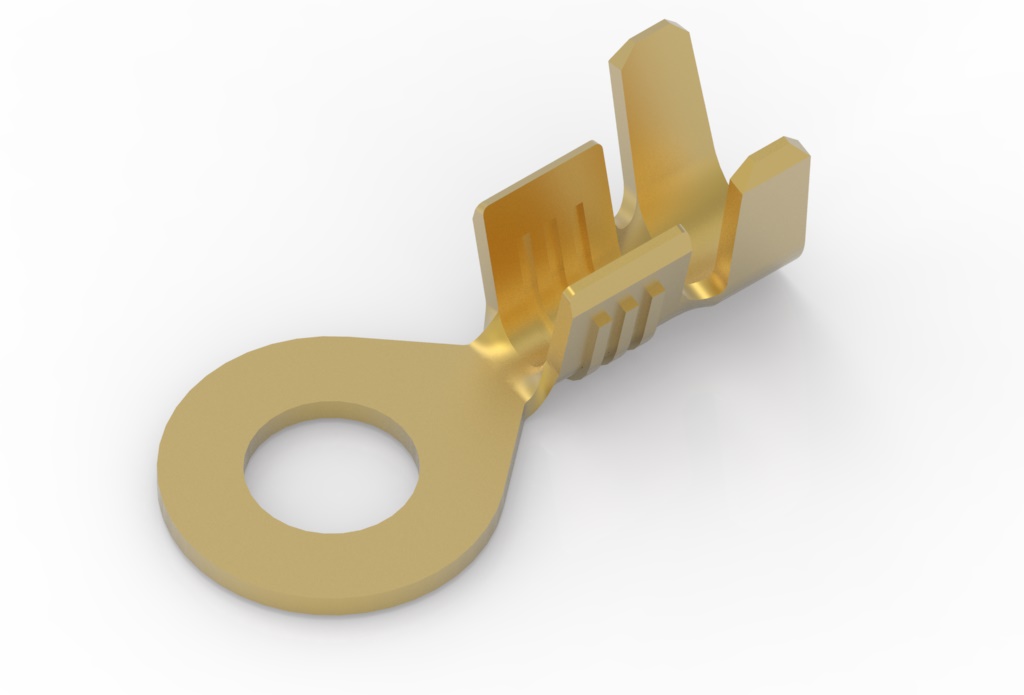

10496	1.0/2.50	0.50	BRASS	4.25	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

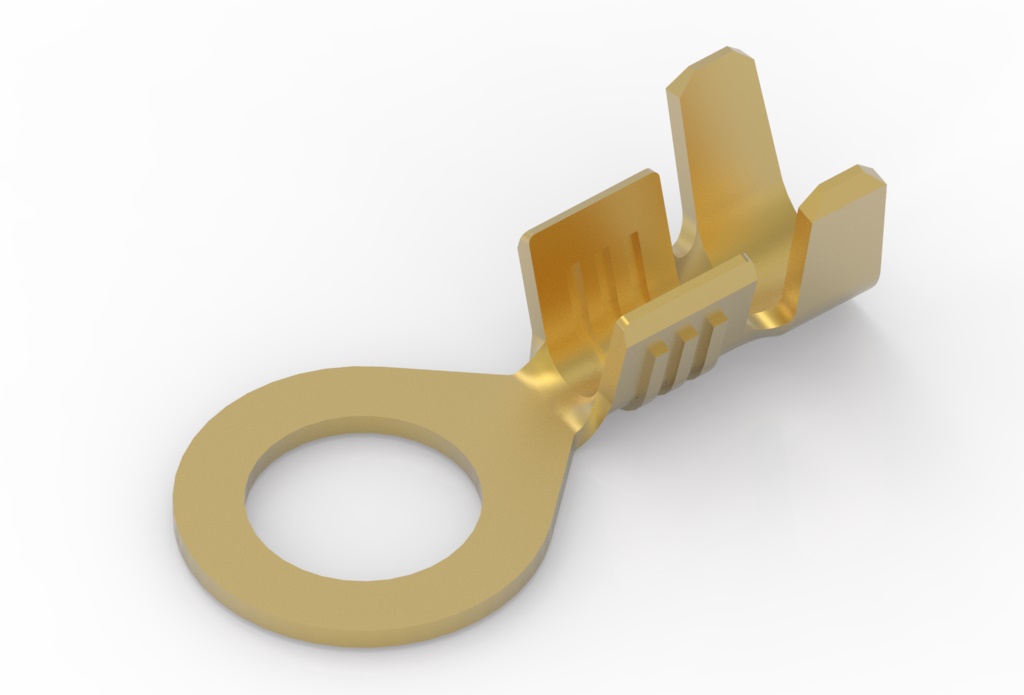

10497	1.0/2.50	0.50	BRASS	5.25	10000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related
25053	0.50/2.00	0.50	BRASS	5.25	7000	4000		-
25054	0.50/2.00	0.50	BRASS	6.50	7000	4000		-
25059	0.75/2.00	0.74	BRASS	5.25	7000	4000		-
25060	0.75/2.00	0.74	BRASS	6.50	7000	4000		-

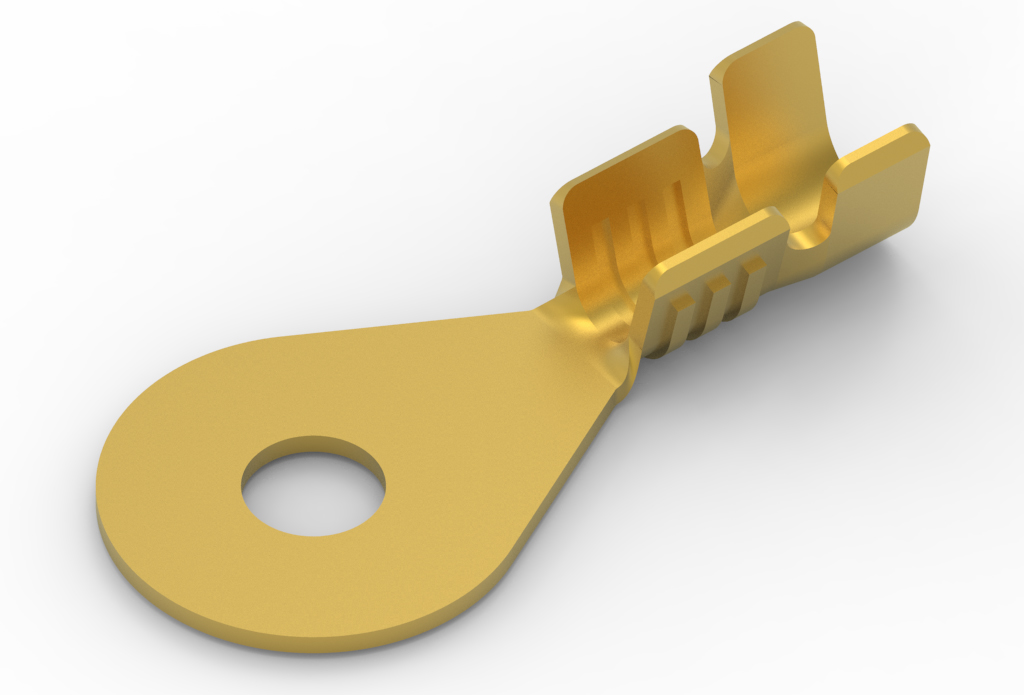

25083	0.50/2.00	0.50	BRASS	3.25	7000	4000		-
25098	0.50/2.00	0.50	BRASS	4.25	7000	4000		-
25105	0.50/2.00	0.60	BRASS	5.25	7000	4000		-
25106	0.50/2.00	0.60	BRASS	6.50	7000	4000		-
25163	0.75/2.00	0.74	BRASS	4.25	7000	4000		-
25278	0.50/2.00	0.60	BRASS	4.25	7000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

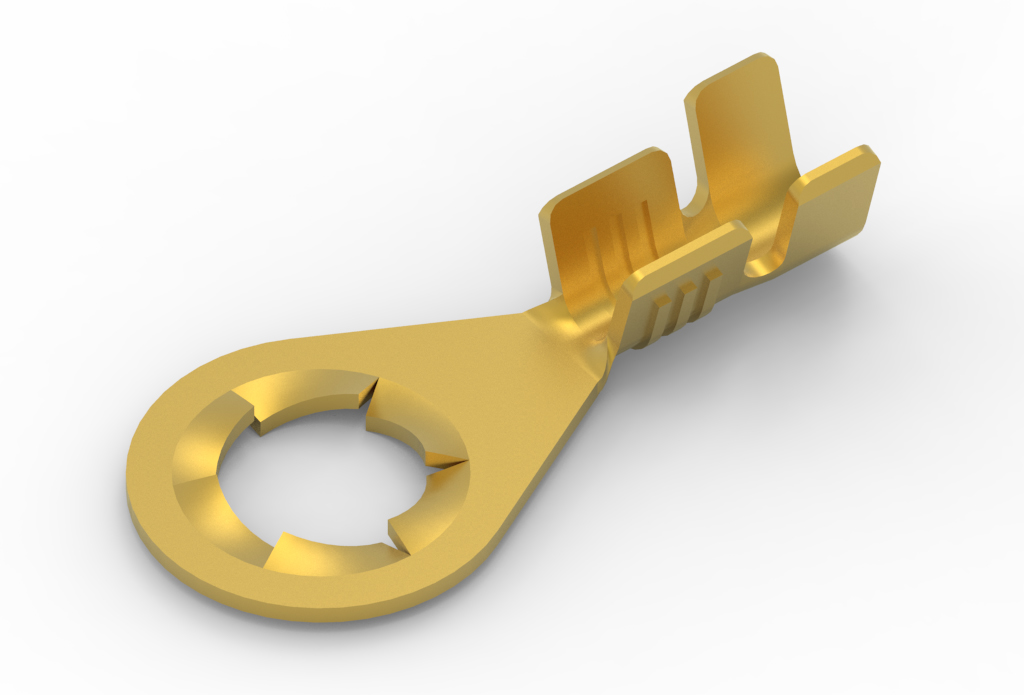

25337	0.50/2.00	0.50	BRASS	5.30	7000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related
26056	1.30/4.20	0.74	BRASS	7.50	3500	4000		-
26058	1.30/4.20	0.74	BRASS	8.50	3500	4000		-
26062	1.30/4.20	0.50	BRASS	8.50	3500	4000		-
26063	1.30/4.20	0.74	BRASS	6.75	3500	4000		-

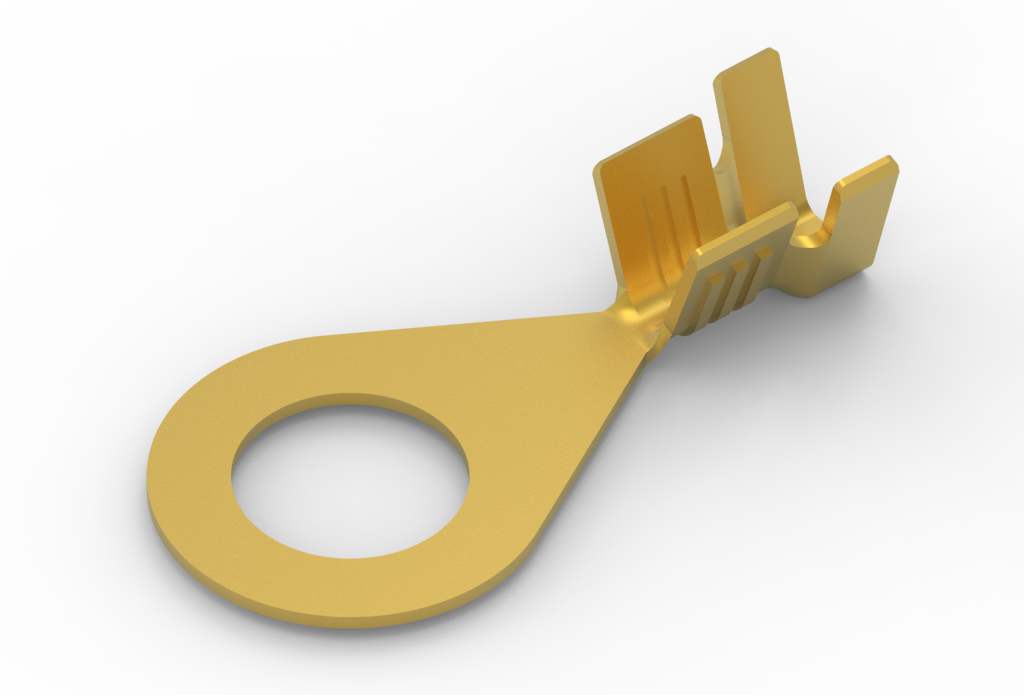

26065	1.30/4.20	0.50	BRASS	6.75	3500	4000		-
26096	1.30/4.20	0.50	BRASS	7.50	3500	4000		-
26118	1.30/4.20	0.50	BRASS	4.20	3500	4000		-
26186	1.30/4.20	0.50	BRASS	5.25	3500	4000		-
26218	1.30/4.20	0.74	BRASS	5.25	3500	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

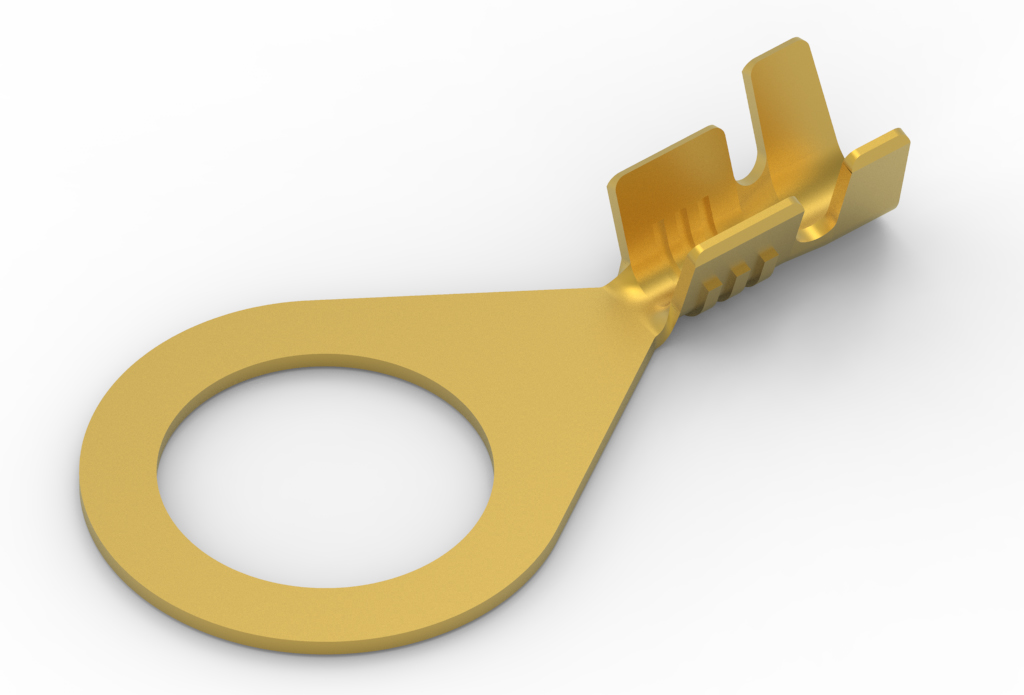

26341	0.75/2.50	0.45	BRASS	9.75	3500	4000		-
26441	0.75/2.50	0.45	BRASS	8.50	3500	4000		-
26442	0.75/2.50	0.45	BRASS	6.75	3500	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

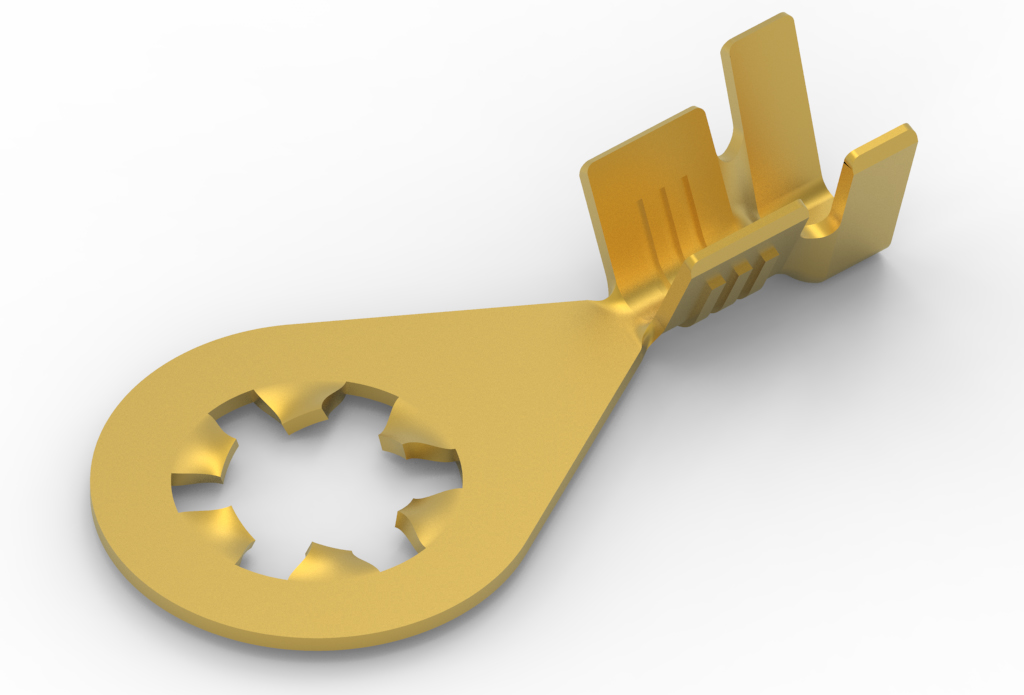

29084	1.30/4.20	0.74	BRASS	5.50	3500	4000		-
29085	1.30/4.20	0.75	PHOSPHORUS BRONZE	5.50	3500	4000		-
29473	1.30/4.20	0.50	BRASS	5.50	3500	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related
32099	0.80/3.00	0.50	BRASS	4.20	4000	4000		-

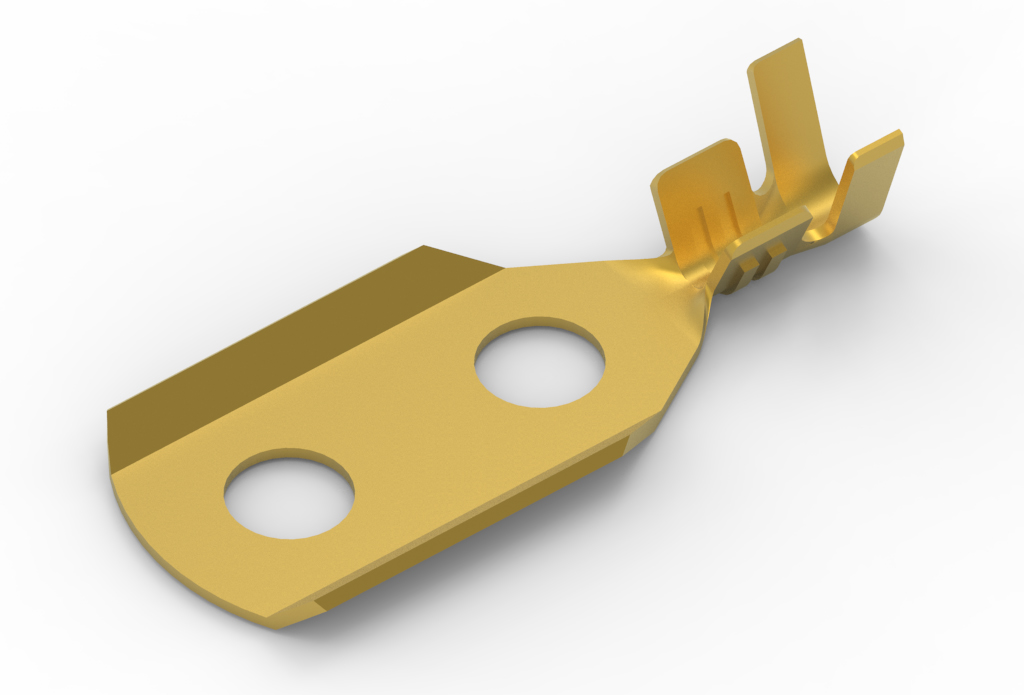

32100	0.50/1.50	0.42	BRASS	4.20	4000	4000		-
32333	0.50/1.50	0.74	BRASS	4.20	4000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

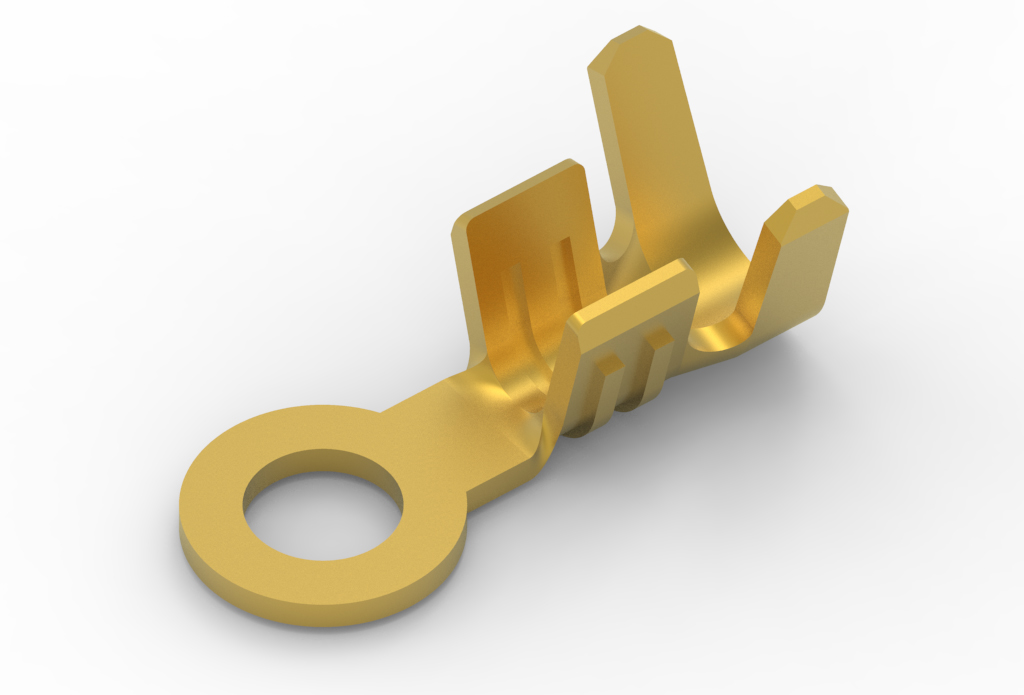

34109	0.50/2.00	0.50	BRASS	2.60	18000	4000		-
34144	0.50/2.00	0.50	BRASS	3.05	18000	4000		-

Flag-type rings

Code	Wire range mm²	Material thickness mm	Material	Hole diameter mm	Qty per reel	Qty per bag	Drawing	Connector Related

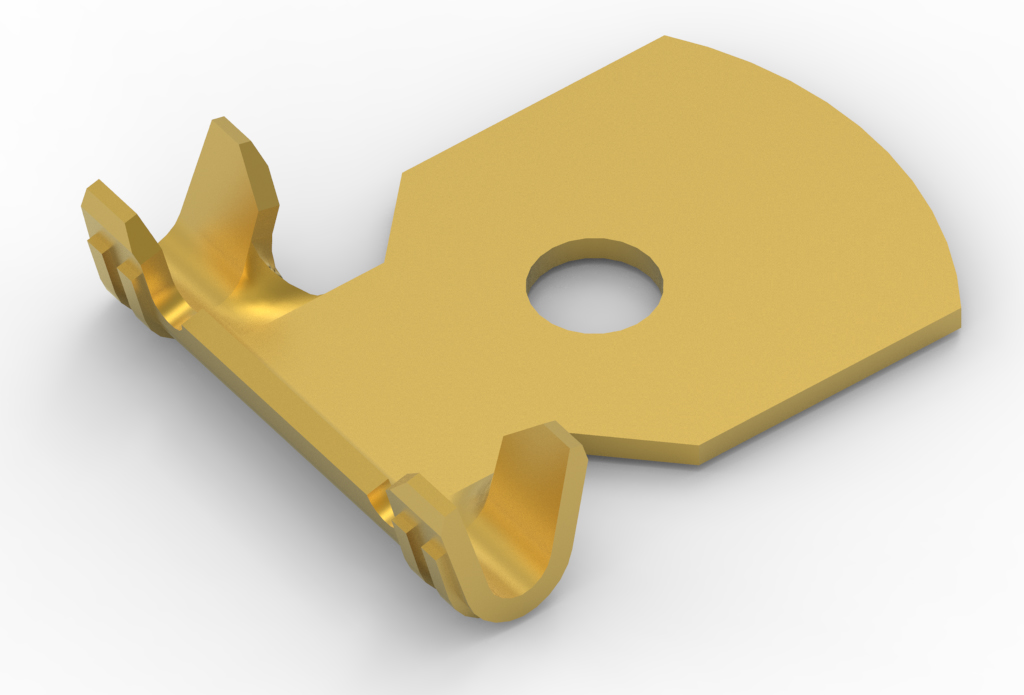

36126	0.30/0.80	0.45	BRASS	2.30	15000	4000		-
36329	0.30/0.80	0.45	BRASS	2.30	15000	4000		-

Welding rings

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related

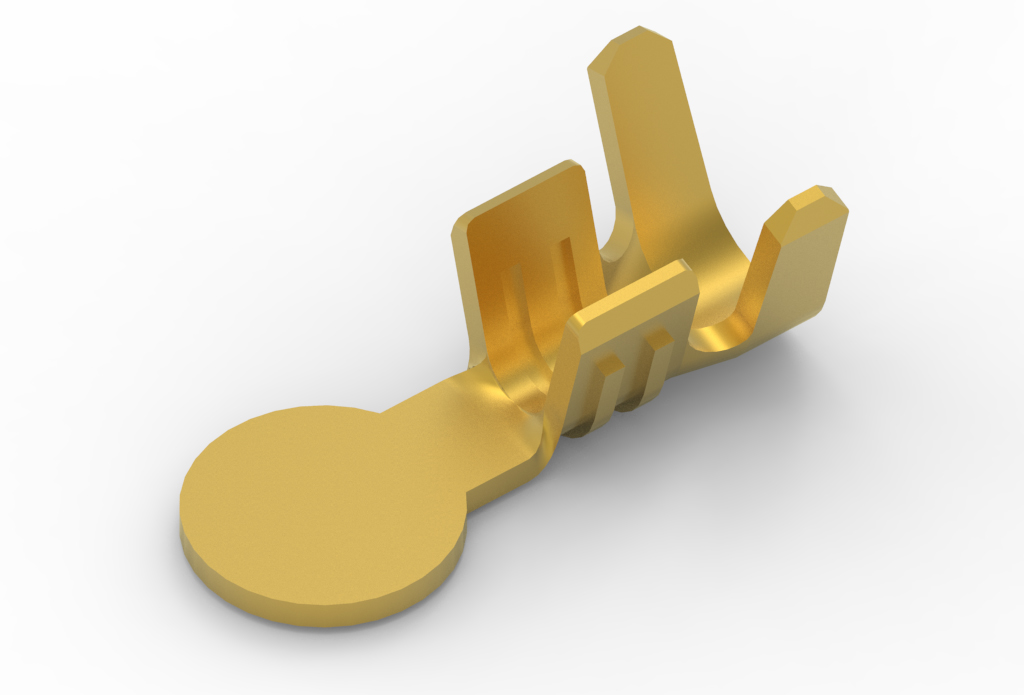

34200	0.50/2.00	0.50	BRASS	18000	4000		-

Code	Wire range mm²	Material thickness mm	Material	Qty per reel	Qty per bag	Drawing	Connector Related

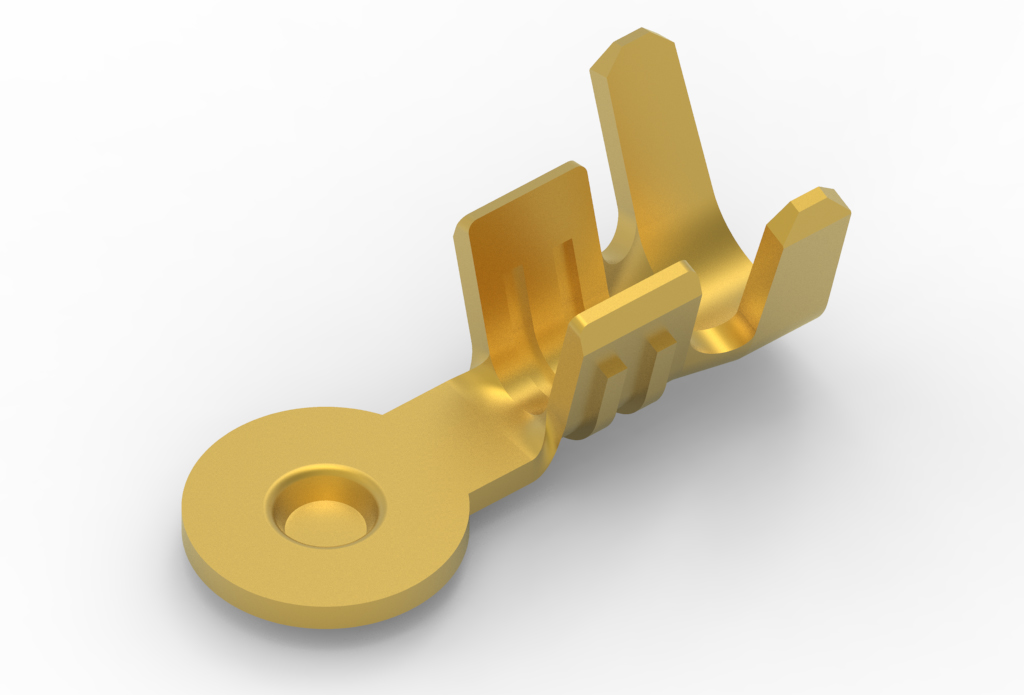

34292	0.50/2.00	0.50	BRASS	18000	4000		-
